SM8-F20-HHE0
ActiveNMB TECHNOLOGIES
STEPPER MOTOR PM BIPOLAR 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM8-F20-HHE0
ActiveNMB TECHNOLOGIES
STEPPER MOTOR PM BIPOLAR 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM8-F20-HHE0 |
|---|---|
| Coil Resistance | 21 Ohms |
| Coil Type | Bipolar |
| Diameter - Shaft [diameter] | 0.039 in |
| Diameter - Shaft [diameter] | 1 mm |
| Features | Round Shaft |
| Mounting Hole Spacing | 0.433 " |
| Mounting Hole Spacing | 11 mm |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 8 mm |
| Size / Dimension [diameter] | 0.315 " |
| Step Angle | 18 ° |
| Termination Style | PC Pin |
| Type | Permanent Magnet |
| Voltage - Rated | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 51.26 | |
| 5 | $ 50.37 | |||
| 10 | $ 49.49 | |||
| 25 | $ 48.61 | |||
| 50 | $ 47.72 | |||
| 100 | $ 47.02 | |||
Description
General part information
SM8-F20 Series

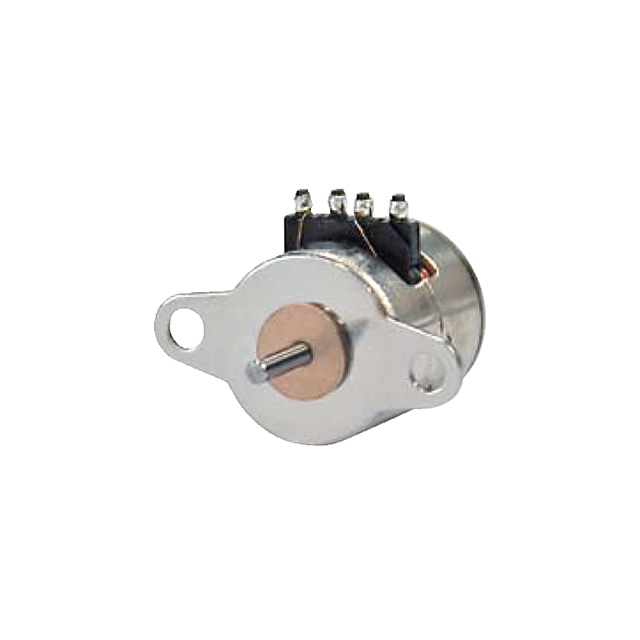

Bipolar Stepper Motor Permanent Magnet Frame Size 20.0 Step 5VDC
