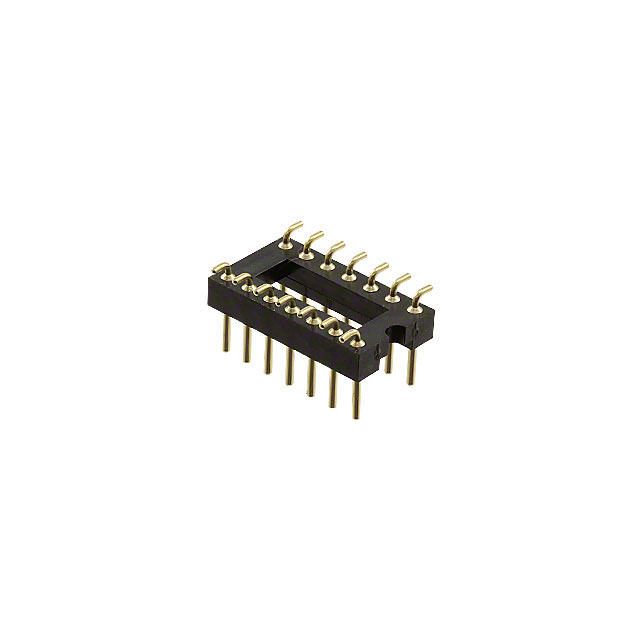

222-1-14-003

Obsolete

CnC Tech, LLC

CONN HDR DIP MALE PIN 14POS GOLD

Search across all available documentation for this part.

Obsolete

CnC Tech, LLC

CONN HDR DIP MALE PIN 14POS GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Color	Contact Finish	Mounting Type	Row Spacing	Row Spacing	Number of Rows	Termination	Number of Positions	Connector Type	Pitch [x]	Pitch [x]	Number of Positions
CnC Tech, LLC 222-1-16-003	Black	Gold	Surface Mount	0.3 in	7.62 mm	2	Solder	16	DIL - Header DIP	2.54 mm	0.1 in
CnC Tech, LLC 222-1-40-006	Black	Gold	Surface Mount	0.6 in	15.24 mm	2	Solder		DIL - Header DIP	2.54 mm	0.1 in	40
CnC Tech, LLC 222-1-24-006	Black	Gold	Surface Mount	0.6 in	15.24 mm	2	Solder		DIL - Header DIP	2.54 mm	0.1 in	24
CnC Tech, LLC 222-1-14-003	Black	Gold	Surface Mount	0.3 in	7.62 mm	2	Solder		DIL - Header DIP	2.54 mm	0.1 in	14
CnC Tech, LLC 222-1-20-003	Black	Gold	Surface Mount	0.3 in	7.62 mm	2	Solder		DIL - Header DIP	2.54 mm	0.1 in	20
CnC Tech, LLC 222-1-48-006	Black	Gold	Surface Mount	0.6 in	15.24 mm	2	Solder		DIL - Header DIP	2.54 mm	0.1 in	48

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position DIP, DIL - Header Connector Post Gold
