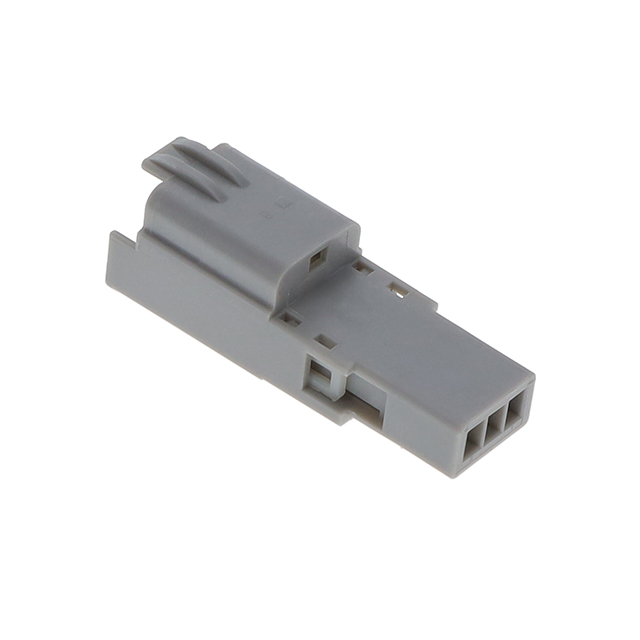

0310671041

Active

Molex

CONN HDR HSG 3POS 2.54MM

Search across all available documentation for this part.

Active

Molex

CONN HDR HSG 3POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Part	Features	Number of Rows	Contact Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Note	Contact Termination	Fastening Type	Mounting Type	Pitch [x]	Pitch [x]
Molex 0310671040	Terminal Position Lock (TPA)	1	Male Pin	Header	105 ░C	-55 °C	Black	Contacts Not Included	Crimp	Latch Holder	Free Hanging (In-Line)	2.54 mm	0.1 in
Molex 0310671041	Terminal Position Lock (TPA)	1	Male Pin	Header	105 ░C	-55 °C	Gray	Contacts Not Included	Crimp	Latch Holder	Free Hanging (In-Line)	2.54 mm	0.1 in
Molex 0310671011	Terminal Position Lock (TPA)	1	Female Socket	Receptacle	100 °C	-40 °C	Gray	Contacts Not Included	Crimp	Latch Lock	Free Hanging (In-Line)	2.54 mm	0.1 in
Molex 0310671070	Terminal Position Lock (TPA)	1	Male Pin	Header	100 °C	-40 °C	Black	Contacts Not Included	Crimp	Latch Holder	Bracket Mount	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Header Gray 0.100" (2.54mm)

Technical documentation and resources

No documents available
