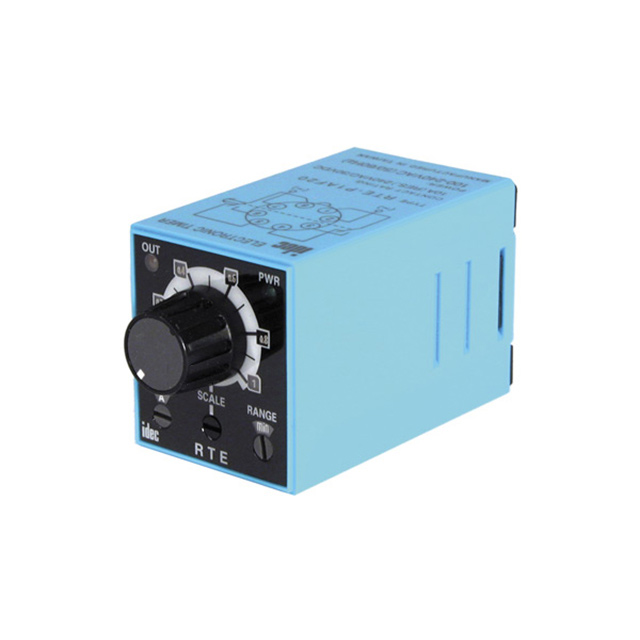

RTE-P1AD24
ActiveANALOG TIMER, MULTI MODE, CMOS, RTE SERIES, MULTIFUNCTION, 20 RANGES, 0.1 S, 600 H
Deep-Dive with AI
Search across all available documentation for this part.
RTE-P1AD24
ActiveANALOG TIMER, MULTI MODE, CMOS, RTE SERIES, MULTIFUNCTION, 20 RANGES, 0.1 S, 600 H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTE-P1AD24 |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 240 VAC, 30 VDC, 10 A |
| Delay Time [Max] | 600 Hrs |
| Delay Time [Min] | 0.1 Sec |
| Function | Programmable (Multi-Function) |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In, 8 Pin (Octal) |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply | 24 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RTE-P1AD Series
The RTE-P1AD24 is a 24VAC/DC 8-pin multi-function Analog Timer with plug-in termination and 2-changeover relay. The RTE series timer includes 10 timing functions and 2 form C DPDT (delayed output) contacts. It features 20 time ranges from 0.1second to 600hours, solid state CMOS circuit operation system, 500000 operations minimum resistive electrical life and 50000000 operations minimum mechanical life.
