VLA503-01

Obsolete

Powerex Inc.

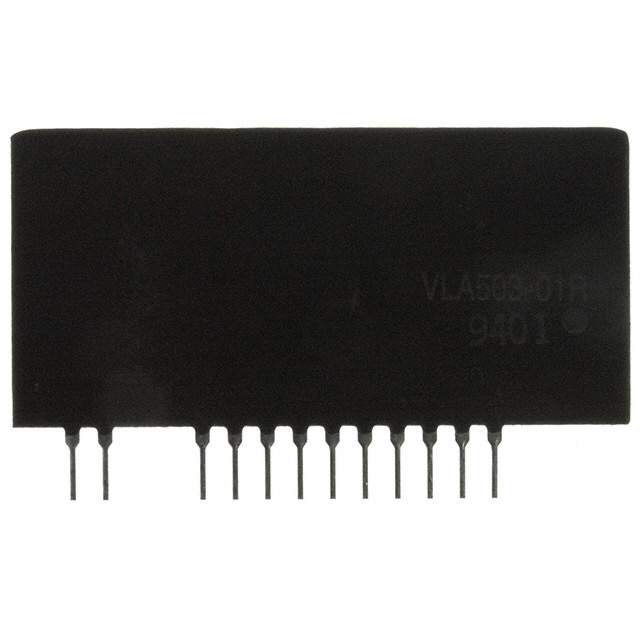

IC GATE DRVR LOW-SIDE MODULE

Search across all available documentation for this part.

Obsolete

Powerex Inc.

IC GATE DRVR LOW-SIDE MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	VLA503-01

Channel Type	Single
Current - Peak Output (Source, Sink) [custom]	5 A
Current - Peak Output (Source, Sink) [custom]	5 A
Driven Configuration	Low-Side
Gate Type	IGBT
Input Type	Non-Inverting
Mounting Type	Through Hole
Number of Drivers	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Package / Case	12-SIP
Rise / Fall Time (Typ) [custom]	300 ns
Rise / Fall Time (Typ) [custom]	300 ns
Supplier Device Package	Module
Voltage - Supply [Max]	15 V
Voltage - Supply [Min]	14 V

Part	Gate Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Input Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Driven Configuration	Number of Drivers	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Channel Type	Package / Case
Powerex Inc. VLA503-01	IGBT	60 °C	-20 °C	Module	Non-Inverting	15 V	14 V	Through Hole	300 ns	300 ns	Low-Side	1	5 A	5 A	Single	12-SIP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Low-Side Gate Driver IC Non-Inverting Module
