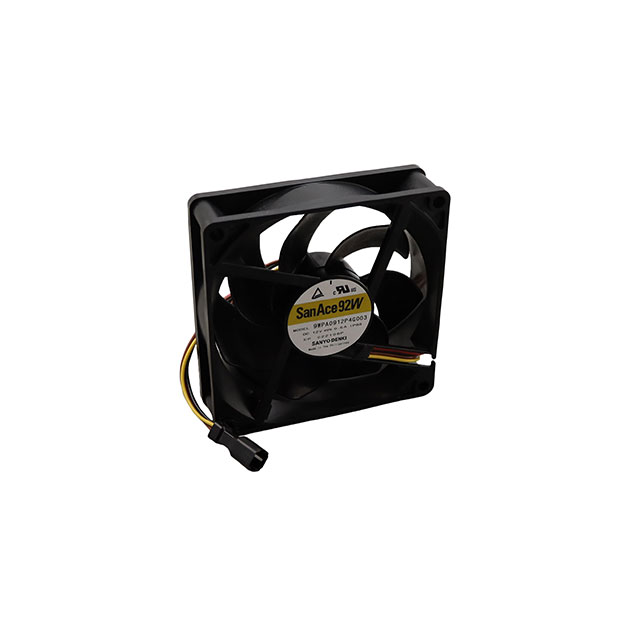

9WPA0912P4G003

Active

Sanyo Denki America Inc.

92X25MM, DC, 12V, SPLASH & DUST

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

92X25MM, DC, 12V, SPLASH & DUST

Technical Specifications

Parameters and characteristics for this part

Specification	9WPA0912P4G003

Air Flow	86.5 CFM
Air Flow	2.42 m³/min
Bearing Type	Ball
Current Rating (Amps)	0.5 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Ingress Protection	IP68 - Dust Tight, Waterproof
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	47.7 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
RPM	5700 RPM
Static Pressure	0.51 in H2O
Static Pressure	127 Pa
Termination	4 Position Rectangular Connector
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Width [x]	25.2 mm

Part	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Lifetime @ Temp.	RPM	Ingress Protection	Air Flow	Air Flow	Noise	Termination	Width [x]	Material - Frame	Current Rating (Amps)	Voltage - Rated	Material - Blade	Fan Type	Static Pressure	Static Pressure	Bearing Type	Power (Watts)
Sanyo Denki America Inc. 9WPA0912P4G003	13.2 VDC	10.8 VDC	-20 °C	70 °C	-20 C	70 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)	40000 Hrs	5700 RPM	IP68 - Dust Tight Waterproof	86.5 CFM	2.42 m³/min	47.7 dB(A)	4 Position Rectangular Connector	25.2 mm	Plastic	0.5 A	12 VDC	Plastic	Tubeaxial	0.51 in H2O	127 Pa	Ball
Sanyo Denki America Inc. 9WPA0912P4G0011	13.2 VDC	10.8 VDC	-20 °C	70 °C	-20 C	70 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)	40000 Hrs	5700 RPM	IP68 - Dust Tight Waterproof	86.5 CFM	2.42 m³/min	47 dB	4 Wire Leads	25.2 mm	Plastic	0.5 A	12 VDC	Plastic	Tubeaxial	0.51 in H2O	127 Pa	Ball	6 W
Sanyo Denki America Inc. 9WPA0912P4G001	13.2 VDC	10.8 VDC	-20 °C	70 °C	-20 C	70 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)	40000 Hrs	5700 RPM	IP68 - Dust Tight Waterproof	86.5 CFM	2.42 m³/min	47 dB	4 Wire Leads	25.2 mm	Plastic	0.5 A	12 VDC	Plastic	Tubeaxial	0.51 in H2O	127 Pa	Ball	6 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 47.95

General part information

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 86.5 CFM (2.42m³/min) 4 Position Rectangular Connector
