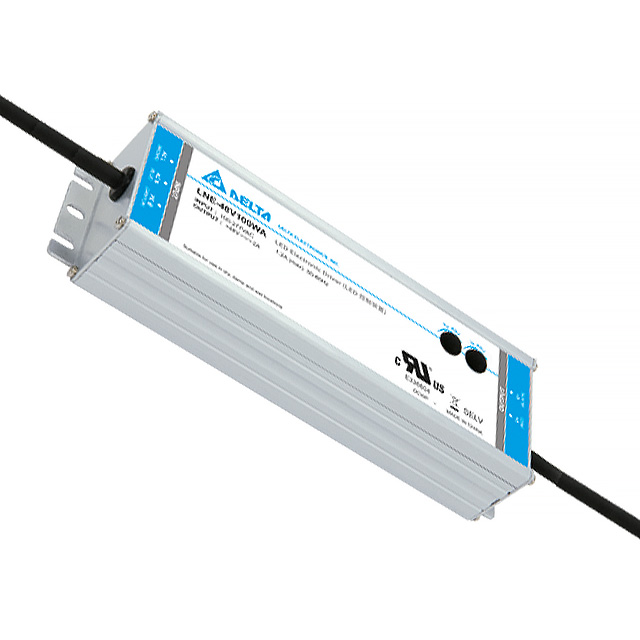

LNE-48V100WAAA

Obsolete

Delta Electronics

LED DRIVER CC/CV AC/DC 48V 2A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Standard Power Supplies UL Cert

LNE-48V100WAAA

Obsolete

Delta Electronics

LED DRIVER CC/CV AC/DC 48V 2A

Deep-Dive with AI

DocumentsDatasheet Standard Power Supplies UL Cert

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LNE-48V100WAAA

Approval Agency	UL
Current - Output (Max) [Max]	2 A
Efficiency	93 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	100 W
Ratings	IP65
Size / Dimension [x]	7.72 "
Size / Dimension [x]	196 mm
Size / Dimension [y]	2.68 "
Size / Dimension [y]	68 mm
Size / Dimension [z]	1.53 in
Size / Dimension [z]	38.8 mm
Standard Number	55011, 50581, 55032, 60950-1, 60601-1
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3.85 kV
Voltage - Output [Max]	48 V
Voltage - Output [Min]	24 V
Weight	997.9 g
Weight	2.2 lbs

LNE-48 Series

Part	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Features	Type	Mounting Type	Current - Output (Max) [Max]	Standard Number	Approval Agency	Termination Style	Number of Outputs	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output [Max]	Voltage - Output [Min]	Power (Watts)	Voltage - Isolation	Voltage - Input (Max) [Max]	Topology	Dimming	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Weight	Weight
Delta Electronics LNE-48V320WAAA	IP65	-40 °C	70 °C	OCP OTP OVP SCP	Constant Current Voltage	Chassis Mount	6.7 A	50581 55011 55032 60601-1 60950-1	UL	Wire Leads	1	90 VAC	252 mm	1.72 in	9.92 in	89.9 mm	3.54 in	43.7 mm	48 V	24 V	320 W	3.85 kV	305 VAC	AC DC Converter	Analog PWM	94.5 %
Delta Electronics LNE-48V100WAAA	IP65	-40 °C	70 °C	OCP OTP OVP SCP	Constant Current Voltage	Chassis Mount	2 A	50581 55011 55032 60601-1 60950-1	UL	Wire Leads	1	90 VAC	196 mm	1.53 in	7.72 "		2.68 "		48 V	24 V	100 W	3.85 kV	305 VAC	AC DC Converter		93 %	38.8 mm	68 mm	997.9 g	2.2 lbs
Delta Electronics LNE-48V320WDAA	IP67	-40 °C	70 °C	OCP OTP OVP SCP	Constant Current Voltage	Chassis Mount	6.7 A	50581 55011 55032 60601-1 60950-1	UL	Wire Leads	1	90 VAC	252 mm	1.72 in	9.92 in	89.9 mm	3.54 in	43.7 mm	48 V	24 V	320 W	3.85 kV	305 VAC	AC DC Converter	Analog PWM	94.5 %
Delta Electronics LNE-48V185WDAA	IP67	-40 °C	70 °C	OCP OTP OVP SCP	Constant Current Voltage	Chassis Mount	3.9 A	50581 55011 55032 60601-1 60950-1	UL	Wire Leads	1	90 VAC	204 mm	1.53 in	8.03 "		2.68 "		48 V	24 V	185 W	3.85 kV	305 VAC	AC DC Converter	Analog PWM	94 %	38.8 mm	68 mm	1.1 kg	2.4 lbs
Delta Electronics LNE-48V150WDAA	IP67	-40 °C	70 °C	OCP OTP OVP SCP	Constant Current Voltage	Chassis Mount	3.2 A	50581 55011 55032 60601-1 60950-1	UL	Wire Leads	1	90 VAC	204 mm	1.53 in	8.03 "		2.68 "		48 V	24 V	150 W	3.85 kV	305 VAC	AC DC Converter	Analog PWM	94 %	38.8 mm	68 mm	1.1 kg	2.4 lbs
Delta Electronics LNE-48V120WDAA	IP67	-40 °C	70 °C	OCP OTP OVP SCP	Constant Current Voltage	Chassis Mount	2.5 A	50581 55011 55032 60601-1 60950-1	UL	Wire Leads	1	90 VAC	196 mm	1.53 in	7.72 "		2.68 "		48 V	24 V	120 W	3.85 kV	305 VAC	AC DC Converter	Analog PWM	93.5 %	38.8 mm	68 mm	997.9 g	2.2 lbs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LNE-48 Series

2A 24 ~ 48V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
