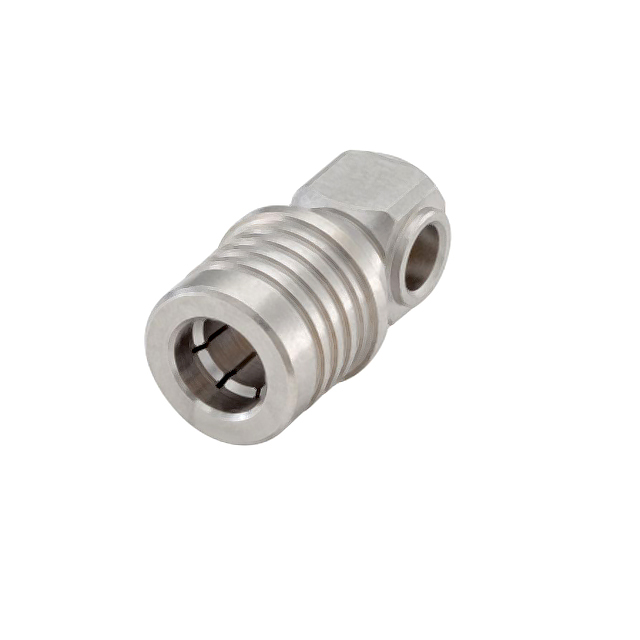

28S208-272N5

Active

Rosenberger

CONN QMA PLUG R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN QMA PLUG R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	28S208-272N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	335 V

Part	Frequency - Max [Max]	Voltage Rating	Dielectric Material	Housing Color	Connector Type	Mounting Type	Body Finish	Center Contact Plating	Fastening Type	Body Material	Shield Termination	Contact Termination	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Impedance
Rosenberger 28S208-272N5	18 GHz	335 V	Polytetrafluoroethylene (PTFE)	Silver	Male Pin Plug	Free Hanging (In-Line) Right Angle	White Bronze	Gold	Snap-On	Brass	Solder	Solder	1	85 °C	-40 °C	Brass	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
