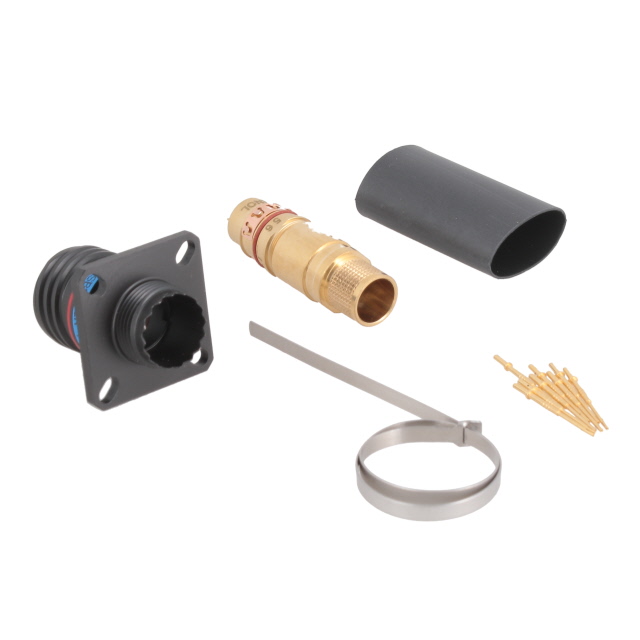

TVP00UCOMUSB3CZN11S

Active

Amphenol Socapex

CONN RCPT FMALE 8POS CRIMP

Search across all available documentation for this part.

Active

Amphenol Socapex

CONN RCPT FMALE 8POS CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	TVP00UCOMUSB3CZN11S

Applications	Military, Aerospace
Color	Black
Connector Type	Receptacle, Female Sockets
Features	Heat Shrink
Mounting Feature	Flange
Mounting Type	Free Hanging (In-Line), Panel Mount
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Black Zinc Nickel
Shell Material	Aluminum
Shell Size - Insert	11
Shielding	Unshielded
Termination	Crimp

Part	Shell Size - Insert	Color	Shell Finish	Connector Type	Mounting Feature	Primary Material	Number of Positions	Orientation	Features	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Shielding	Shell Material	Termination
Amphenol Socapex TVP00UCOMUSB3SF11S	11	Silver	Nickel	Receptacle Female Sockets	Flange	Metal	8	N	Heat Shrink	-55 °C	125 °C	Aerospace Military	Free Hanging (In-Line) Panel Mount	Unshielded	Aluminum
Amphenol Socapex TVP00UCOMUSB3CW11S	11	Olive Drab	Olive Drab Cadmium	Receptacle Female Sockets	Flange	Metal	8	N	Heat Shrink	-55 °C	125 °C	Aerospace Military	Free Hanging (In-Line) Panel Mount	Unshielded	Aluminum	Crimp
Amphenol Socapex TVP00UCOMUSB3CZN11S	11	Black	Black Zinc Nickel	Receptacle Female Sockets	Flange	Metal	8	N	Heat Shrink	-55 °C	125 °C	Aerospace Military	Free Hanging (In-Line) Panel Mount	Unshielded	Aluminum	Crimp
Amphenol Socapex TVP00UCOMUSB3SW11S	11	Olive Drab	Olive Drab Cadmium	Receptacle Female Sockets	Flange	Metal	8	N	Heat Shrink	-55 °C	125 °C	Aerospace Military	Free Hanging (In-Line) Panel Mount	Unshielded	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (Data) Position Circular Connector Receptacle, Female Sockets Crimp
