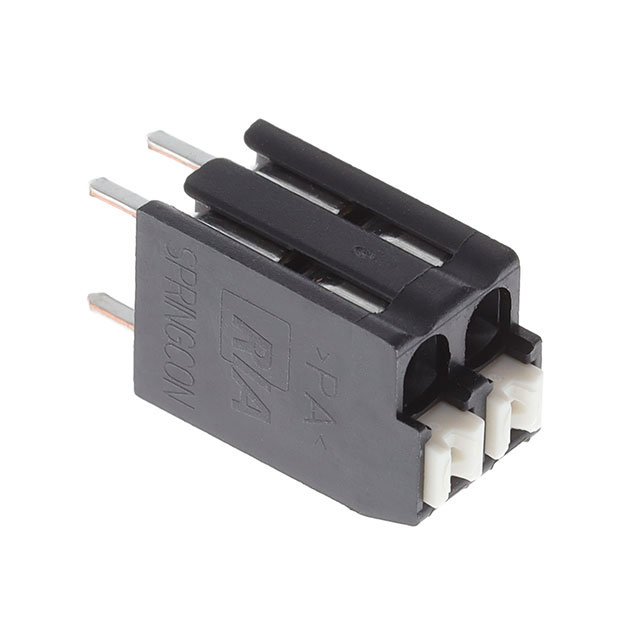

AST2130202
ActiveMETZ CONNECT USA Inc.
TERM BLK 2P TOP ENTRY 3.5MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
AST2130202
ActiveMETZ CONNECT USA Inc.
TERM BLK 2P TOP ENTRY 3.5MM PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AST2130202 |
|---|---|
| Clamp Material - Plating | Steel |
| Color | Black |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 10 A |
| Features | Push Button Actuated |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 3.5 mm |
| Pitch [x] | 0.138 in |
| Positions Per Level | 2 |
| Voltage | 150 V |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 16 AWG |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.48 | |
| 10 | $ 1.04 | |||
| 25 | $ 0.97 | |||
| 50 | $ 0.88 | |||
| 100 | $ 0.88 | |||
| 300 | $ 0.74 | |||
| 500 | $ 0.70 | |||
| 1000 | $ 0.62 | |||
| 5000 | $ 0.51 | |||
Description
General part information
AST213 Series
2 Position Wire to Board Terminal Block Vertical with Board 0.138" (3.50mm) Through Hole
Documents
Technical documentation and resources
No documents available
