C052C101K2R5TA

Active

KEMET

CAP CER 100PF 200V X7R RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 100PF 200V X7R RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Lead Style	Package / Case	Voltage - Rated	Tolerance	Mounting Type	Temperature Coefficient	Lead Spacing	Lead Spacing	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features	Applications
KEMET C052C120J2G5TA	-55 °C	125 °C	Formed Leads	Radial	200 V	5 %	Through Hole	C0G NP0	5.08 mm	0.2 in	12 pF	0.09 "	0.19 "	2.29 mm	4.83 mm	5.08 mm	0.2 "	Low ESL	General Purpose
KEMET C052C151J2G5CA	-55 °C	125 °C	Formed Leads	Radial	200 V	5 %	Through Hole	C0G NP0	5.08 mm	0.2 in	150 pF	0.09 "	0.19 "	2.29 mm	4.83 mm	5.95 mm	0.234 in	Low ESL	General Purpose
KEMET C052C101K2R5TA	-55 °C	125 °C	Formed Leads	Radial	200 V	10 %	Through Hole	X7R	5.08 mm	0.2 in	100 pF	0.09 "	0.19 "	2.29 mm	4.83 mm	5.08 mm	0.2 "		General Purpose
KEMET C052C104K5R5TA7301	-55 °C	125 °C	Formed Leads	Radial	50 VDC	10 %	Through Hole	X7R	5.08 mm	0.2 in	100000 pF	0.09 "	0.19 "	2.29 mm	4.83 mm	5.08 mm	0.2 "		General Purpose
KEMET C052C104K5R5TA	-55 °C	125 °C	Formed Leads	Radial	50 VDC	10 %	Through Hole	X7R	5.08 mm	0.2 in	100000 pF	0.09 "	0.19 "	2.29 mm	4.83 mm	5.08 mm	0.2 "		General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

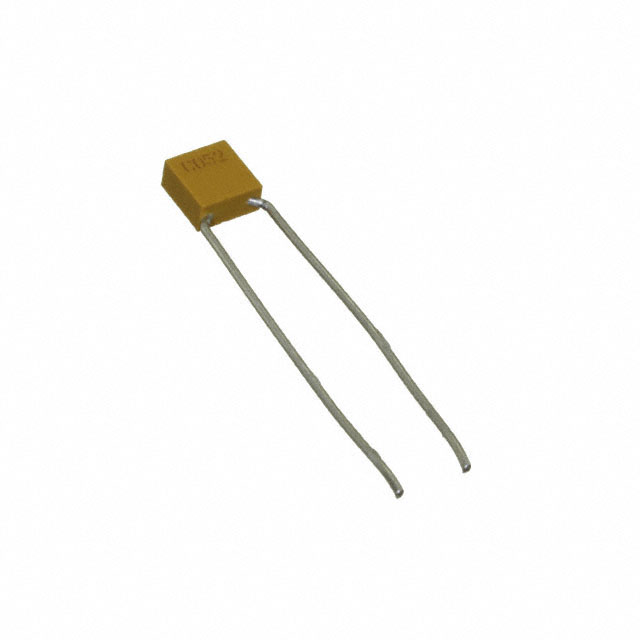

100 pF ±10% 200V Ceramic Capacitor X7R Radial

Technical documentation and resources
