SN74AUCH240RGYR

Obsolete

Texas Instruments

BUFFER/LINE DRIVER 8-CH INVERTING 3-ST CMOS 20-PIN VQFN EP T/R

Search across all available documentation for this part.

Obsolete

Texas Instruments

BUFFER/LINE DRIVER 8-CH INVERTING 3-ST CMOS 20-PIN VQFN EP T/R

Technical Specifications

Parameters and characteristics for this part

Specification	SN74AUCH240RGYR

Current - Output High, Low [custom]	9 mA
Current - Output High, Low [custom]	9 mA
Logic Type	Inverting, Buffer
Mounting Type	Surface Mount
Number of Bits per Element	4
Number of Elements	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	3-State

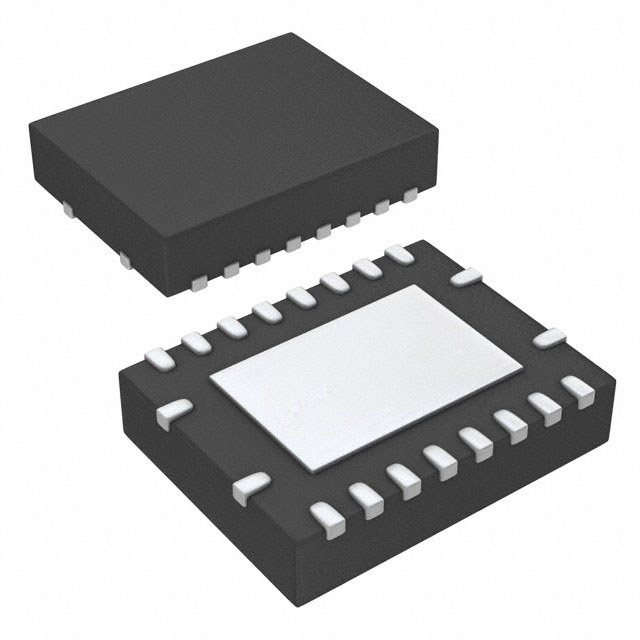

Package / Case	20-VFQFN Exposed Pad
Supplier Device Package	20-VQFN (3.5x4.5)
Voltage - Supply [Max]	2.7 V
Voltage - Supply [Min]	0.8 V

Part	Number of Elements	Logic Type	Package / Case	Supplier Device Package	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Bits per Element	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
Texas Instruments SN74AUCH240RGYR	2	Buffer Inverting	20-VFQFN Exposed Pad	20-VQFN (3.5x4.5)	3-State	2.7 V	0.8 V	9 mA	9 mA	4	Surface Mount	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buffer, Inverting 2 Element 4 Bit per Element 3-State Output 20-VQFN (3.5x4.5)
