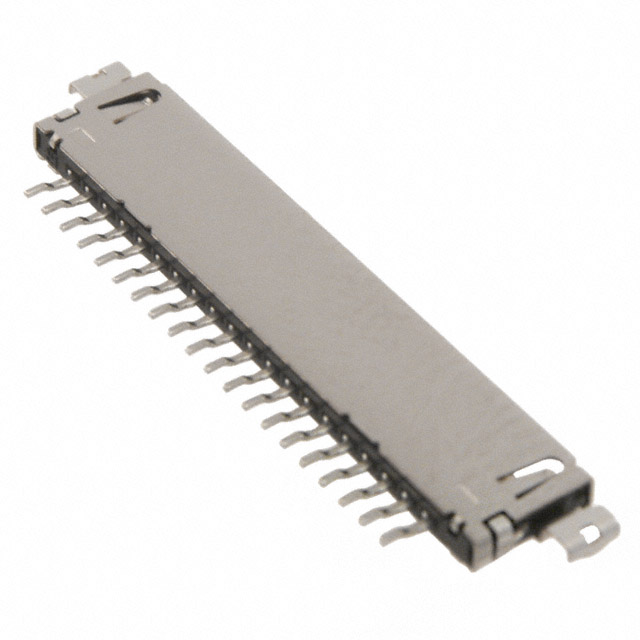

DF19KR-20P-1H(55)
ActiveHirose Electric USA, Inc.
CONN HEADER BRD EDGE 20P 1MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF19KR-20P-1H(55)
ActiveHirose Electric USA, Inc.
CONN HEADER BRD EDGE 20P 1MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF19KR-20P-1H(55) |
|---|---|
| Connector Type | Receptacle, Reverse Pin |
| Contact Finish - Mating | Gold |
| Contact Material | Phosphor Bronze |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Features | Solder Retention |
| Insulation Color | Black |
| Insulation Height | 0.057 in |
| Insulation Height | 1.45 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Board Edge, Cutout, Surface Mount, Right Angle |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -35 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Shrouding | Shrouded - 3 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 100 V |
DF19KR Series
| Part | Connector Type | Shrouding | Insulation Height | Insulation Height | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Contact Material | Contact Finish - Mating | Number of Positions Loaded | Insulation Material | Insulation Color | Termination | Number of Positions | Voltage Rating | Number of Rows | Style | Contact Type | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Receptacle Reverse Pin | Shrouded - 3 Wall | 0.057 in | 1.45 mm | Board Edge Cutout Surface Mount Right Angle | -35 °C | 85 °C | Friction Lock | Phosphor Bronze | Gold | All | Nylon Polyamide (PA) | Beige | Solder | 14 | 100 V | 1 | Board to Cable/Wire | Male Pin | UL94 V-0 | 0.039 in | 1 mm | Solder Retention | ||||||
Hirose Electric USA, Inc. | Receptacle Reverse Pin | Shrouded - 3 Wall | 0.057 in | 1.45 mm | Board Edge Cutout Surface Mount Right Angle | -35 °C | 85 °C | Friction Lock | Phosphor Bronze | Gold | All | Nylon Polyamide (PA) | Black | Solder | 20 | 100 V | 1 | Board to Cable/Wire | Male Pin | UL94 V-0 | 0.039 in | 1 mm | Solder Retention | ||||||
Hirose Electric USA, Inc. | Receptacle Reverse Pin | Shrouded - 3 Wall | 0.057 in | 1.45 mm | Board Edge Cutout Surface Mount Right Angle | -35 °C | 85 °C | Friction Lock | Phosphor Bronze | Gold | All | Nylon Polyamide (PA) | Beige | Solder | 20 | 100 V | 1 | Board to Cable/Wire | Male Pin | UL94 V-0 | 0.039 in | 1 mm | Solder Retention | ||||||
Hirose Electric USA, Inc. | Receptacle Reverse Pin | Shrouded - 3 Wall | 0.057 in | 1.45 mm | Board Edge Cutout Surface Mount Right Angle | -35 °C | 85 °C | Friction Lock | Phosphor Bronze | Gold | All | Nylon Polyamide (PA) | Black | Solder | 20 | 100 VAC | 1 | Board to Cable/Wire | Male Pin | UL94 V-0 | 0.039 in | 1 mm | Solder Retention | 3.94 µin | 0.1 µm | Varies by Wire Gauge | Gold | 3.94 Áin | 0.1 Ám |
Hirose Electric USA, Inc. | Receptacle Reverse Pin | Shrouded - 3 Wall | 0.057 in | 1.45 mm | Board Edge Cutout Surface Mount Right Angle | -35 °C | 85 °C | Friction Lock | Phosphor Bronze | Gold | All | Nylon Polyamide (PA) | Black | Solder | 14 | 100 V | 1 | Board to Cable/Wire | Male Pin | UL94 V-0 | 0.039 in | 1 mm | Solder Retention |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DF19KR Series
Connector Header Board Edge, Cutout; Surface Mount, Right Angle 20 position 0.039" (1.00mm)
