09340100304

Active

HARTING Technology Group

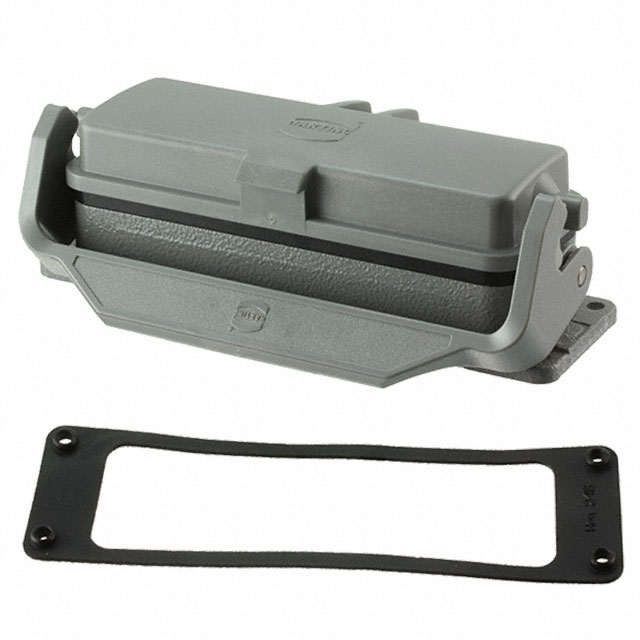

HAN HVE BASE PANEL 1 LEVER THERMOPLASTIC ROHS COMPLIANT: NA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09340100304

Active

HARTING Technology Group

HAN HVE BASE PANEL 1 LEVER THERMOPLASTIC ROHS COMPLIANT: NA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09340100304

Connector Type	Base - Panel Mount
Features	Cover
Lock Location	Locking Clip (1) on Base Bottom
Size / Dimension [x]	140 mm
Size / Dimension [x]	5.512 "
Size / Dimension [y]	1.709 in
Size / Dimension [y]	43.4 mm
Size / Dimension [z]	1.138 "
Size / Dimension [z]	28.9 mm
Style	Bottom Entry

09340100 Series

Part	Lock Location	Style	Connector Type	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Thread Size	Housing Finish	Ingress Protection	Housing Material	Size	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color
HARTING Technology Group 09340100302	Locking Clip (2) on Hood	Bottom Entry	Base - Panel Mount	Cover	140 mm	1.138 "	5.512 "	28.9 mm	1.709 in	43.4 mm
HARTING Technology Group 09340100502	Locking Clip (2) on Hood	Side Entry	Hood		120 mm	2.461 in	4.724 "		1.693 in		62.5 mm	43 mm	PG21
HARTING Technology Group 09340100501	Locking Clip (2) on Base Bottom	Side Entry	Hood		120 mm	2.461 in	4.724 "		1.693 in		62.5 mm	43 mm	PG21
HARTING Technology Group 09340100301	Locking Clip (2) on Base Bottom	Bottom Entry	Base - Panel Mount		140 mm	1.138 "	5.512 "	28.9 mm	1.709 in	43.4 mm				Powder Coated	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	24 B	125 °C	-40 °C	Gray
HARTING Technology Group 09340100304	Locking Clip (1) on Base Bottom	Bottom Entry	Base - Panel Mount	Cover	140 mm	1.138 "	5.512 "	28.9 mm	1.709 in	43.4 mm
HARTING Technology Group 09340100404	Locking Clip (1) on Base Bottom	Top Entry	Hood		120 mm	2.165 in	4.724 "		1.693 in		55 mm	43 mm	PG29
HARTING Technology Group 09340100701	Locking Clip (2) on Hood Top	Bottom Entry	Hood - Coupling	Cable to Cable	120 mm	2.26 "	4.724 "		1.693 in		57.4 mm	43 mm	PG29
HARTING Technology Group 09340100402	Locking Clip (2) on Hood	Top Entry	Hood		120 mm	2.165 in	4.724 "		1.693 in		55 mm	43 mm	PG29				24 B
HARTING Technology Group 09340100202	Locking Clip (2) on Hood	Side Entry	Base - Box Mount		144 mm	2.205 in	5.669 "		2.244 "		56 mm	57 mm	PG21
HARTING Technology Group 09340100203	Locking Clip (1) on Base Bottom	Side Entry	Base - Box Mount		144 mm	2.205 in	5.669 "		2.244 "		56 mm	57 mm	PG21

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 157.33
Newark	Each	1	$ 130.12
		10	$ 122.81
		25	$ 119.16
		50	$ 110.39
		100	$ 104.54

Description

General part information

09340100 Series

Base - Panel Mount Connector Bottom Entry

Documents

Technical documentation and resources
