Q6R3CXXB12E
ActiveAPEM
LED PM INDICATOR RECESSED BLUE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q6R3CXXB12E
ActiveAPEM
LED PM INDICATOR RECESSED BLUE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q6R3CXXB12E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Blue |
| Lens Color | Blue |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 65 mcd |
| Panel Cutout Dimensions | 6.1 mm |
| Panel Cutout Dimensions | 0.24 in |
| Panel Cutout Shape | Round |
| Termination Style | Wire Leads - 7.87" (200.00mm) |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 21.49 | |
| 25 | $ 15.91 | |||
| 100 | $ 14.55 | |||
| 500 | $ 13.44 | |||
Description
General part information
Q6R3CXXB Series

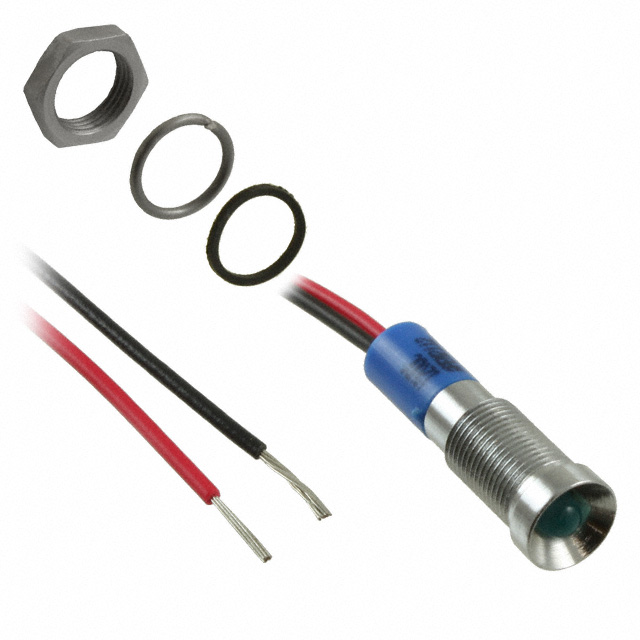

LED Panel Indicator Blue Diffused 100° 12V 20mA Wire Leads - 7.87" (200.00mm)
Documents
Technical documentation and resources
