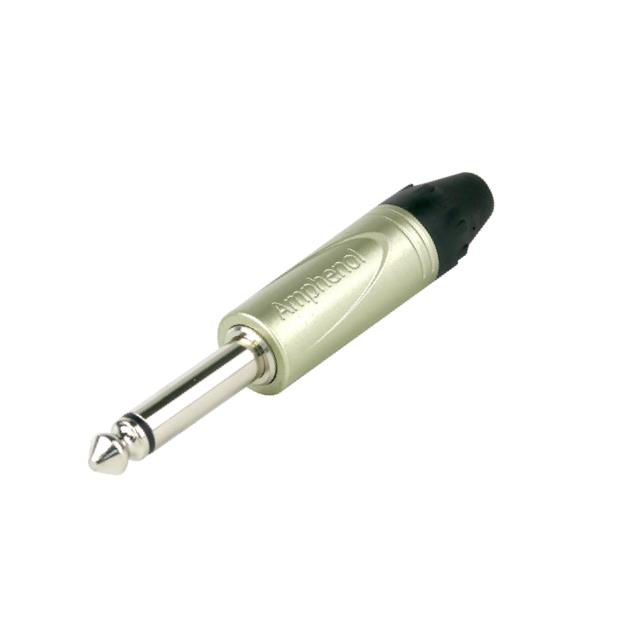

QM2P
ActiveAMPHENOL AUDIO
PHONE CONN, MONO, PLUG, 6.35MM, 2POS ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QM2P
ActiveAMPHENOL AUDIO
PHONE CONN, MONO, PLUG, 6.35MM, 2POS ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QM2P |
|---|---|
| Actual Diameter [diameter] | 0.249 in |
| Actual Diameter [diameter] | 6.32 mm |
| Body Color | Silver, Black |
| Cable Opening [Max] [custom] | 0.276 in |
| Cable Opening [Max] [custom] | 7 mm |
| Cable Opening [Min] [custom] | 3 mm |
| Cable Opening [Min] [custom] | 0.118 in |
| Connector Type | Phone Plug |
| Contact Material | Brass |
| Contact Material - Plating [custom] | Nickel |
| Current Rating (Amps) | 10 A |
| Gender | Male |
| Housing Material | Zinc Alloy |
| Includes | 4 pcs - 1 Connector, 1 Strain Relief, 2 pc Cover |
| Internal Switch(s) | False |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder Eyelet(s) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
QM2 Series
6.35mm (0.250", 1/4") - Headphone Phone Plug Mono Connector Solder Eyelet(s)
