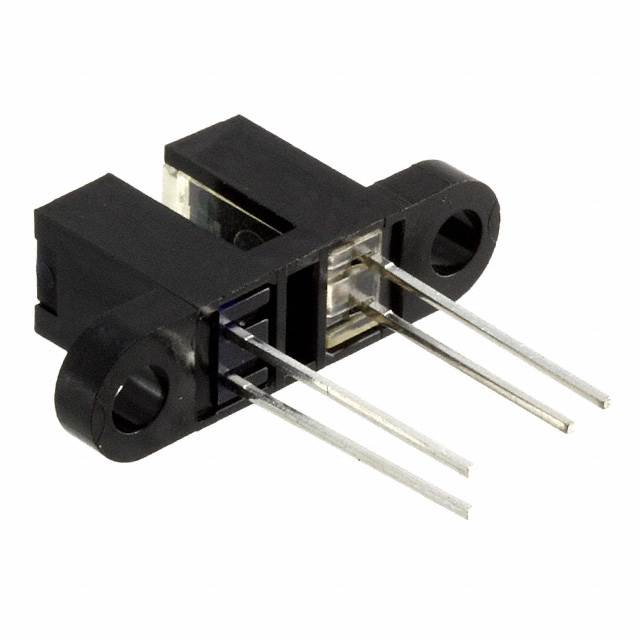

OPB365T55

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRAN PCB MT

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRAN PCB MT

Technical Specifications

Parameters and characteristics for this part

Specification	OPB365T55

Current - Collector (Ic) (Max) [Max]	30 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Phototransistor
Package / Case	PCB Mount
Sensing Distance	0.125 "
Sensing Distance	3.18 mm
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Sensing Distance	Sensing Distance	Mounting Type	Package / Case	Current - DC Forward (If) (Max)	Output Configuration	Sensing Method	Current - Collector (Ic) (Max) [Max]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]
TT Electronics/Optek Technology OPB365T55	0.125 "	3.18 mm	Through Hole	PCB Mount	50 mA	Phototransistor	Through-Beam	30 mA	Unamplified	85 °C	-40 °C	30 V
TT Electronics/Optek Technology OPB365L51	0.125 "	3.18 mm	Through Hole	PCB Mount	50 mA	Phototransistor	Through-Beam	30 mA	Unamplified	85 °C	-40 °C	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor Through-Beam 0.125" (3.18mm) Phototransistor PCB Mount
