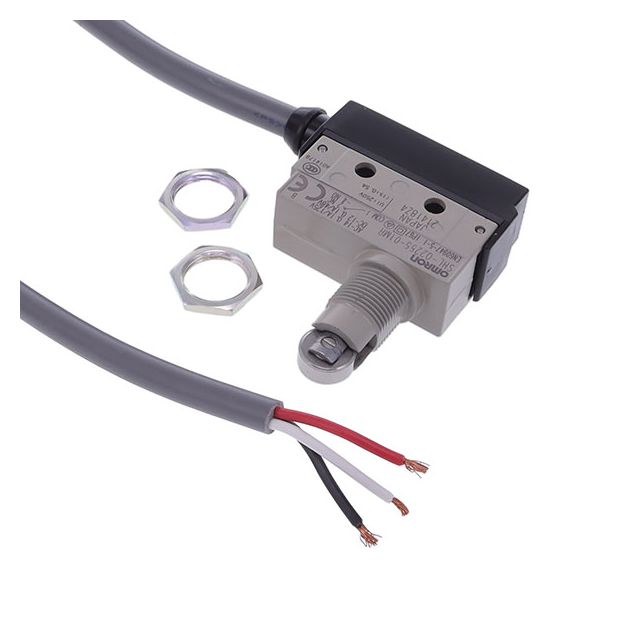

SHL-Q2255-01MR

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPDT 0.1A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPDT 0.1A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Mechanical Life	Current Rating (Amps)	Electrical Life	Circuit	Switch Function	Operating Position	Operating Position	Voltage Rating - AC	Ingress Protection	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Differential Travel	Differential Travel	Termination Style	Features	Pretravel	Pretravel	Operating Force	Release Force	Overtravel	Overtravel	Actuator Type
Omron Electronics Inc-EMC Div SHL-Q2255-L4MD
Omron Electronics Inc-EMC Div SHL-Q2255-01L4MR VCTF 3M	10000000 Cycles	100 mA	500000 Cycles	SPDT	On-Mom	1.695 in	43.05 mm	125 V	IP67 - Dust Tight Waterproof	30 V	80 C	-10 °C	0.5 mm	0.02 in	Cable Leads	Status Indicator	1.5 mm	0.06 in	1 kgf	200 gf	2 mm	0.079 in	Roller Plunger
Omron Electronics Inc-EMC Div SHL-Q2255-01MR	10000000 Cycles	100 mA	500000 Cycles	SPDT	On-Mom	1.695 in	43.05 mm	125 V	IP67 - Dust Tight Waterproof	30 V	80 C	-10 °C	0.5 mm	0.02 in	Cable Leads		1.5 mm	0.06 in	1 kgf	200 gf	2 mm	0.079 in	Roller Plunger
Omron Electronics Inc-EMC Div SHL-Q2255-MR	10000000 Cycles	5 A 10 A	500000 Cycles	SPDT	On-Mom	1.695 in	43.05 mm	125 V	IP67 - Dust Tight Waterproof	30 V	80 C	-10 °C	0.5 mm	0.02 in	Screw Terminal		1.5 mm	0.06 in	1 kgf	200 gf	2 mm	0.079 in	Roller Plunger

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 69.89

General part information

Switch SPDT Panel Mount
