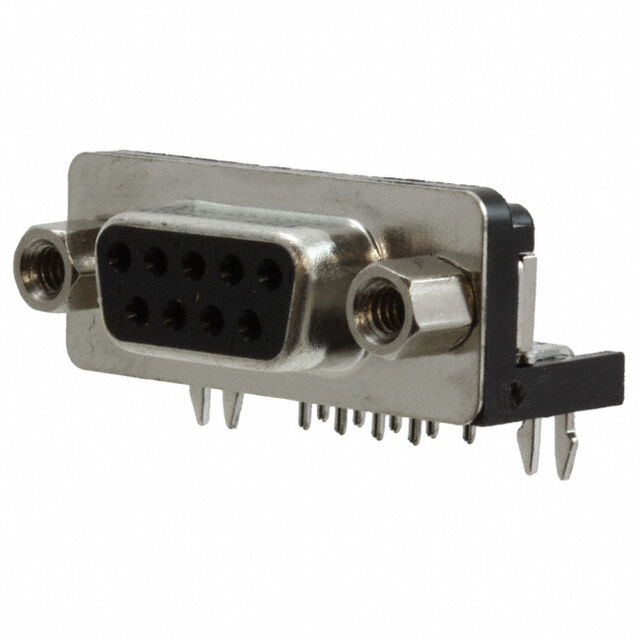

DLS1XS5AK40X

Active

Amphenol CONEC

CONN D-SUB RCPT 9POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB RCPT 9POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	DLS1XS5AK40X

Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Form	Stamped
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic
Flange Feature	Female Screwlock (4-40), Mating Side
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

Part	Mounting Type	Connector Type	Connector Style	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Finish	Dielectric Material	Number of Rows	Current Rating (Amps)	Flange Feature	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Material, Finish	Termination
Amphenol CONEC DLS1XS5AK40X	Board Edge Right Angle Through Hole	Receptacle Female Sockets	D-Sub	Stamped	105 ░C	-55 °C	Signal	Gold	Thermoplastic	2	3 A	Female Screwlock (4-40) Mating Side	9	DE E	1	Steel	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Receptacle, Female Sockets Connector
