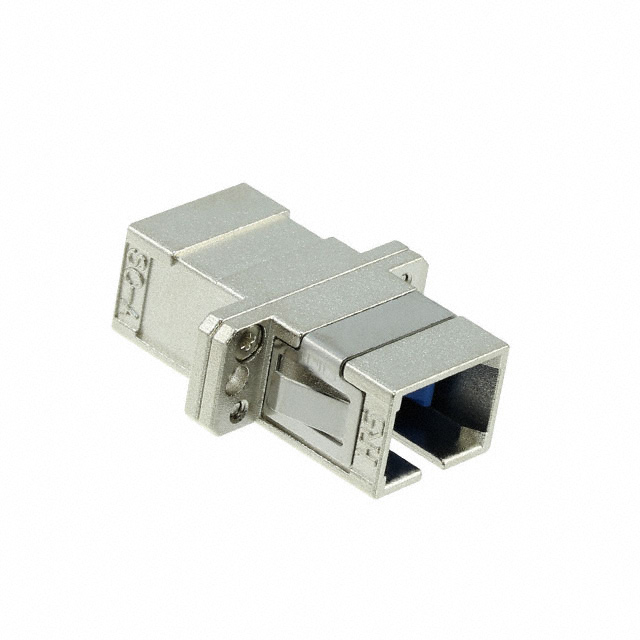

HSC-A2-D1(01)

LTB

Hirose Electric USA, Inc.

CONN COUPLER RCPT SC-SC SIMPLEX

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

CONN COUPLER RCPT SC-SC SIMPLEX

Technical Specifications

Parameters and characteristics for this part

Specification	HSC-A2-D1(01)

Color	Blue
Convert From (Adapter End)	SC Receptacle
Convert To (Adapter End)	SC Receptacle
Features	Dust Cap
Ferrule Material	Zirconia
Housing Material	Zinc Alloy
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Simplex/Duplex	Simplex
Type	Coupler

Part	Ferrule Material	Housing Material	Color	Operating Temperature [Max]	Operating Temperature [Min]	Features	Convert To (Adapter End)	Material Flammability Rating	Mounting Type	Simplex/Duplex	Type	Convert From (Adapter End)
Hirose Electric USA, Inc. HSC-A2-D1(01)	Zirconia	Zinc Alloy	Blue	70 °C	-25 °C	Dust Cap	SC Receptacle	UL94 V-0	Flange Panel Mount Snap-In	Simplex	Coupler	SC Receptacle
Hirose Electric USA, Inc. HSC-A2(50)		Zinc Die Cast		70 °C	-25 °C	Dust Cap	SC Receptacle		Flange Panel Mount Snap-In	Simplex	Coupler	SC Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coupler Fiber Optic Connector SC Receptacle To SC Receptacle Panel Mount, Flange; Snap-In

Technical documentation and resources

No documents available
