P25-3226

Active

Harwin Inc.

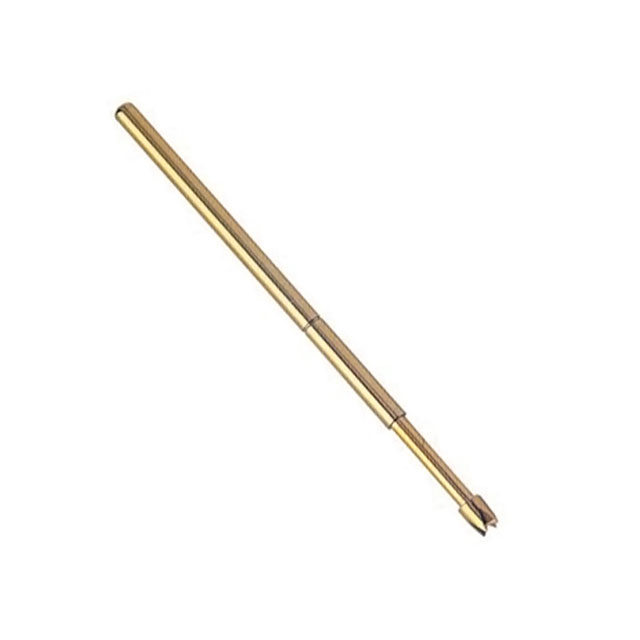

SPRING PROBE, TAPERED CROWN, 2.54MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

SPRING PROBE, TAPERED CROWN, 2.54MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	P25-3226

Connection Type	Sleeve S25-XX6
Current Rating (Amps)	3 A
Length - Overall [x]	33.3 mm
Length - Overall [x]	1.311 "
Length - Tip [custom]	0.327 in
Length - Tip [custom]	8.3 mm
Material - Body	Phosphor Bronze
Material - Tip	Beryllium Copper, Gold Plated
Operating Temperature [Max]	85 °C
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Quantity	1 Box
Tip Type	Crown Head

Part	Material - Tip	Tip Type	Quantity	Length - Overall [x]	Length - Overall [x]	Connection Type	Material - Body	Current Rating (Amps)	Length - Tip [custom]	Length - Tip [custom]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Length - Overall	Length - Overall
Harwin Inc. P25-1726	Beryllium Copper Gold Plated	Tulip Head	1 Box	33.3 mm	1.311 "	Sleeve S25-XX6	Phosphor Bronze	3 A	0.327 in	8.3 mm	-40 °C	-40 °C	85 °C	85 °C
Harwin Inc. P25-4026	Beryllium Copper Gold Plated	Serrated Head	1 Box	33.3 mm	1.311 "	Sleeve S25-XX6	Phosphor Bronze	3 A	0.327 in	8.3 mm	-40 °C	-40 °C	85 °C	85 °C
Harwin Inc. P25-0123	Beryllium Copper Gold Plated	Spear Head	1 Box			Sleeve S25-XX2	Phosphor Bronze	3 A	0.245 "	6.2 mm	-40 °C	-40 °C	85 °C	85 °C	24.7 mm	0.972 in
Harwin Inc. P25-3226	Beryllium Copper Gold Plated	Crown Head	1 Box	33.3 mm	1.311 "	Sleeve S25-XX6	Phosphor Bronze	3 A	0.327 in	8.3 mm	-40 °C	-40 °C	85 °C	85 °C
Harwin Inc. P25-1223	Beryllium Copper Gold Plated	Concave Head	1 Box			Sleeve S25-XX2	Phosphor Bronze	3 A	0.245 "	6.2 mm	-40 °C	-40 °C	85 °C	85 °C	24.7 mm	0.972 in
Harwin Inc. P25-4023	Beryllium Copper Gold Plated	Serrated Head	1 Box			Sleeve S25-XX2	Phosphor Bronze	3 A	0.245 "	6.2 mm	-40 °C	-40 °C	85 °C	85 °C	24.7 mm	0.972 in
Harwin Inc. P25-5223	Beryllium Copper Gold Plated	Star Head	1 Box			Sleeve S25-XX2	Phosphor Bronze	3 A	0.245 "	6.2 mm	-40 °C	-40 °C	85 °C	85 °C	24.7 mm	0.972 in
