ABJ1610609

Obsolete

Panasonic Electric Works

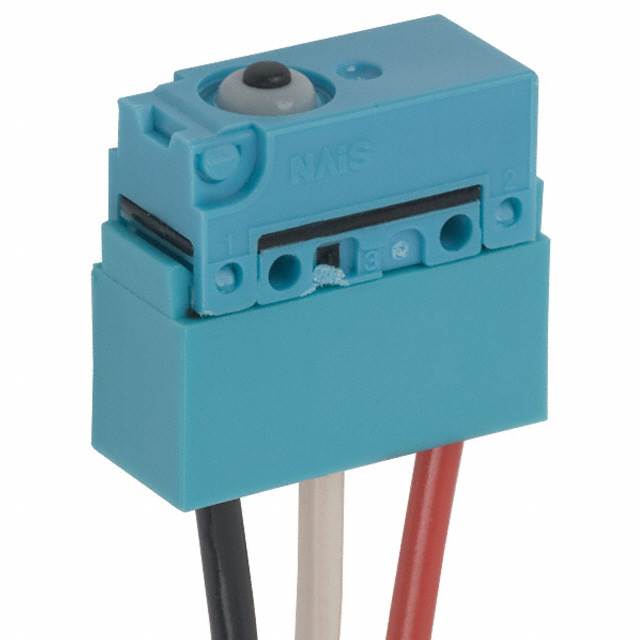

SWITCH SNAP ACTION SPDT 2A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

ABJ1610609

Obsolete

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 2A 125V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ABJ1610609

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	2 A
Differential Travel	0.13 mm
Differential Travel	0.005 in
Electrical Life	6000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	200 gf
Operating Position	0.217 in
Operating Position	5.5 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.25 mm
Overtravel	0.01 in
Pretravel	0.024 in
Pretravel	0.6 mm
Release Force	25 gf
Switch Function	On-Mom
Termination Style	Wire Leads
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

ABJ161 Series

Part	Release Force	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Actuator Type	Overtravel	Overtravel	Voltage Rating - AC	Pretravel	Pretravel	Operating Force	Termination Style	Electrical Life	Mechanical Life	Operating Position	Operating Position	Ingress Protection	Circuit	Switch Function	Differential Travel	Differential Travel	Mounting Type	Current Rating (Amps)	Operating Position [x]	Operating Position [x]
Panasonic Electric Works ABJ1612409	3.059 gf	85 °C	-40 °C	30 V	Lever Straight	0.02 in	0.5 mm	125 V	0.12 in	3 mm	40 gf	Wire Leads	6000 Cycles	1000000 Cycles	6.8 mm	0.268 "	IP67 - Dust Tight Waterproof	SPDT	On-Mom	0.5 mm	0.02 in	Chassis Mount
Panasonic Electric Works ABJ1610609	25 gf	85 °C	-40 °C	30 V	Round (Pin Plunger)	0.01 in	0.25 mm	125 V	0.024 in	0.6 mm	200 gf	Wire Leads	6000 Cycles	1000000 Cycles	5.5 mm	0.217 in	IP67 - Dust Tight Waterproof	SPDT	On-Mom	0.13 mm	0.005 in	Chassis Mount	2 A
Panasonic Electric Works ABJ161241	3.059 gf	85 °C	-40 °C	30 V	Lever Straight	0.02 in	0.5 mm	125 V	0.12 in	3 mm	40 gf	Wire Leads	6000 Cycles	1000000 Cycles	6.8 mm	0.268 "	IP67 - Dust Tight Waterproof	SPDT	On-Mom	0.5 mm	0.02 in	Chassis Mount	100 mA
Panasonic Electric Works ABJ1610409	15 gf	85 °C	-40 °C	30 V	Round (Pin Plunger)	0.01 in	0.25 mm	125 V	0.024 in	0.6 mm	125 gf	Wire Leads	6000 Cycles	1000000 Cycles	5.5 mm	0.217 in	IP67 - Dust Tight Waterproof	SPDT	On-Mom	0.13 mm	0.005 in	Chassis Mount
Panasonic Electric Works ABJ1612609	5.099 gf	85 °C	-40 °C	30 V	Lever Straight	0.02 in	0.5 mm	125 V	0.12 in	3 mm	65 gf	Wire Leads	6000 Cycles	1000000 Cycles	6.8 mm	0.268 "	IP67 - Dust Tight Waterproof	SPDT	On-Mom	0.5 mm	0.02 in	Chassis Mount	2 A
Panasonic Electric Works ABJ1614409	3.059 gf	85 °C	-40 °C	30 V	Lever Simulated Roller	0.02 in	0.5 mm	125 V	0.12 in	3 mm	40 gf	Wire Leads	6000 Cycles	1000000 Cycles			IP67 - Dust Tight Waterproof	SPDT	On-Mom	0.5 mm	0.02 in	Chassis Mount		9.8 mm	0.386 in
Panasonic Electric Works ABJ161040	15 gf	85 °C	-40 °C	30 V	Round (Pin Plunger)	0.01 in	0.25 mm	125 V	0.024 in	0.6 mm	125 gf	Wire Leads	30000 Cycles	1000000 Cycles	5.5 mm	0.217 in	IP67 - Dust Tight Waterproof	SPDT	On-Mom	0.13 mm	0.005 in	Chassis Mount
Panasonic Electric Works ABJ1614419	3.059 gf	85 °C	-40 °C	30 V	Lever Simulated Roller	0.02 in	0.5 mm	125 V	0.12 in	3 mm	40 gf	Wire Leads	6000 Cycles	1000000 Cycles			IP67 - Dust Tight Waterproof	SPDT	On-Mom	0.5 mm	0.02 in	Chassis Mount	100 mA	9.8 mm	0.386 in
