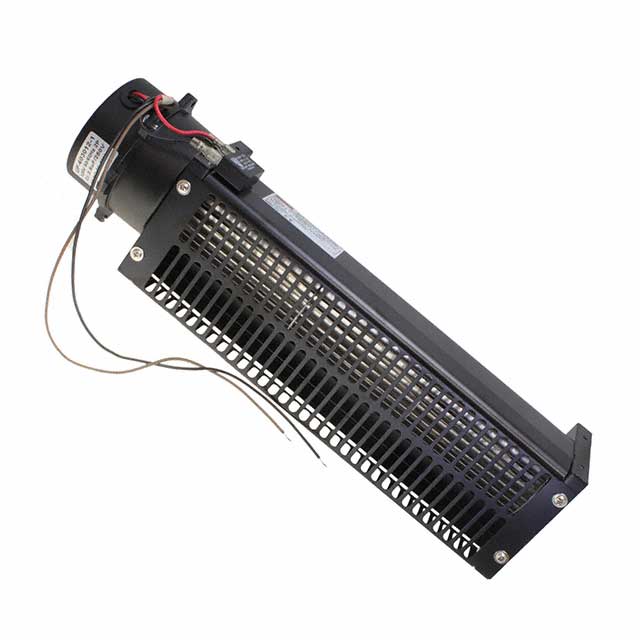

UF6036CBA23H-L

Active

Mechatronics Bearing Group

FAN BLWR CF 230VAC 462X98X90MM

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN BLWR CF 230VAC 462X98X90MM

Technical Specifications

Parameters and characteristics for this part

Specification	UF6036CBA23H-L

Air Flow	212 CFM
Air Flow	5.94 m³/min
Approval Agency	CE, TUV
Bearing Type	Ball
Current Rating (Amps)	0.17 A
Fan Type	Blower, Cross Flow
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Aluminum
Material - Frame	Steel
Noise	53 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	37 W
RPM	2800 RPM
Size / Dimension [x]	462 mm
Size / Dimension [z]	90 mm
Static Pressure	74.7 Pa
Static Pressure	0.3 in H2O
Termination	2 Wire Leads
Voltage - Rated	230 VAC
Weight	2.1 kg
Weight	4.6 lbs
Width [y]	98 mm

Part	Width [y]	Fan Type	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	Bearing Type	Termination	Material - Frame	Features	Approval Agency	Current Rating (Amps)	Noise	Material - Blade	Voltage - Rated	Air Flow	Air Flow	Weight	Weight	RPM
Mechatronics Bearing Group UF6036CBA23H-L	98 mm	Blower Cross Flow	37 W	70 °C	70 °C	-40 °C	-40 °C	90 mm	462 mm	74.7 Pa	0.3 in H2O	Ball	2 Wire Leads	Steel	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	CE TUV	0.17 A	53 dB	Aluminum	230 VAC	212 CFM	5.94 m³/min	2.1 kg	4.6 lbs	2800 RPM
Mechatronics Bearing Group UF6036CBA12H-L	98 mm	Blower Cross Flow	37 W	70 °C	70 °C	-40 °C	-40 °C	90 mm	462 mm	74.7 Pa	0.3 in H2O	Ball	2 Wire Leads	Steel	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	CE TUV	0.33 A	53 dB	Aluminum	120 VAC	212 CFM	5.94 m³/min	2.1 kg	4.6 lbs	2800 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Cross Flow 230VAC Rectangular - 462mm L x 90mm H Ball 212.0 CFM (5.94m³/min) 2 Wire Leads
