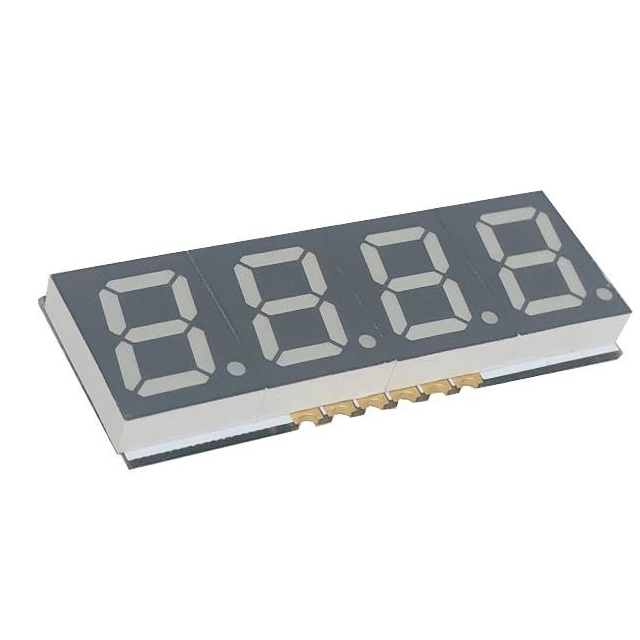

SMC394YG G/W
ActiveAmerican Opto Plus LED
DIS 28SEG 0.39Q UAD Y-GREEN 12DI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMC394YG G/W
ActiveAmerican Opto Plus LED
DIS 28SEG 0.39Q UAD Y-GREEN 12DI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMC394YG G/W |
|---|---|
| Color | Yellow-Green |
| Common Pin | Common Cathode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 0.39 in |
| Digit/Alpha Size | 10 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 12 mcd |
| Number of Characters | 4 |
| Package / Case | 12-SMD, No Lead |
| Power Dissipation (Max) [Max] | 70 mW |
| Size / Dimension [x] | 0.591 in |
| Size / Dimension [x] | 15 mm |
| Size / Dimension [y] | 1.543 in |
| Size / Dimension [y] | 39.2 mm |
| Size / Dimension [z] | 0.15 " |
| Size / Dimension [z] | 3.8 mm |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Peak | 573 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 6.44 | |
| 10 | $ 4.83 | |||
| 100 | $ 4.03 | |||
| 500 | $ 2.82 | |||
| 750 | $ 2.58 | |||
Description
General part information
SMC394 Series
Display Modules - LED Character and Numeric Yellow-Green 7-Segment 4 Character Common Cathode 2.1V 20mA 0.591" H x 1.543" W x 0.150" D (15.00mm x 39.20mm x 3.80mm) 12-SMD, No Lead
