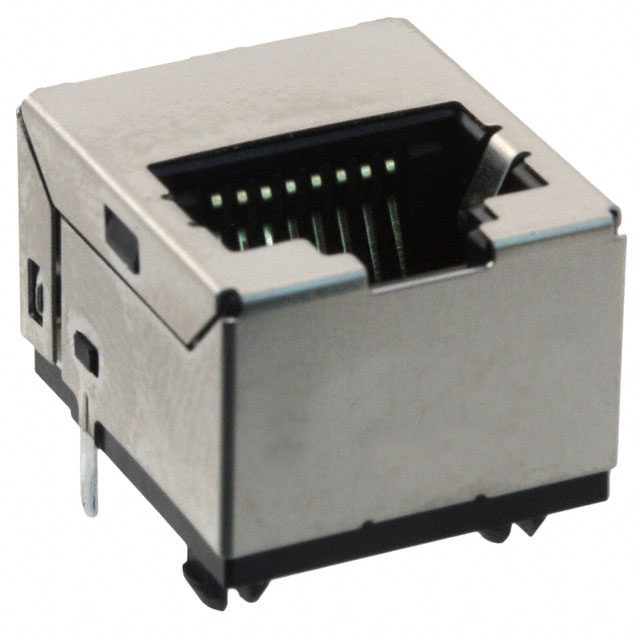

SMJ103-T88I-DS-11

Obsolete

Sullins Connector Solutions

CONN JACK 1PORT 100 BASE-T PCB

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN JACK 1PORT 100 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

Specification	SMJ103-T88I-DS-11

Applications	10/100 Base-T, AutoMDIX
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	0.152 Ám
Contact Finish Thickness	6 Áin
Contact Material	Phosphor Bronze
Height Above Board	12 mm
Height Above Board	0.472 in
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	Vertical
Shield Material	Brass
Shielding	Shielded
Tab Direction	User Selectable
Termination	Solder

Part	Shield Material	Mounting Type	Tab Direction	Contact Finish	Shielding	Connector Type	Termination	Applications	Orientation	LED Color	Contact Finish Thickness	Contact Finish Thickness	Number of Ports	Height Above Board	Height Above Board	Housing Material	Contact Material	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]
Sullins Connector Solutions SMJ103-T88I-DS-11	Brass	Through Hole	User Selectable	Gold	Shielded	RJ45	Solder	10/100 Base-T AutoMDIX	Vertical	Does Not Contain LED	0.152 Ám	6 Áin	1	12 mm	0.472 in	Polybutylene Terephthalate (PBT)	Phosphor Bronze	1	70 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
