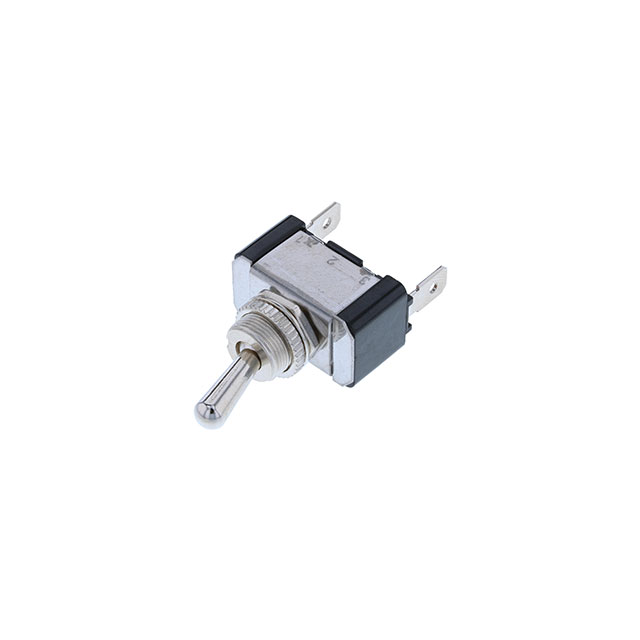

TA1-1A-DC-1

Active

Switch Components

SWITCH TOGGLE SPST 20A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPST 20A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TA1-1A-DC-1

Actuator Length [x]	15.9 mm
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	0.75
Circuit	SPST
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

Part	Actuator Length [x]	Termination Style	Actuator Type	Panel Cutout Dimensions [diameter]	Circuit	Bushing Thread	Bushing Thread	Switch Function	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Current Rating (Amps)	Voltage Rating - DC
Switch Components TA1-1A-DC-1	15.9 mm	Quick Connect - 0.250" (6.3mm)	Standard Round	12.2 mm	SPST	M12	0.75	On-Off	6000 Cycles	65 °C	0 °C	Non-Illuminated	20 A	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.05

General part information

Toggle Switch SPST Panel Mount
