9504-1213-023

Active

Radiall USA, Inc.

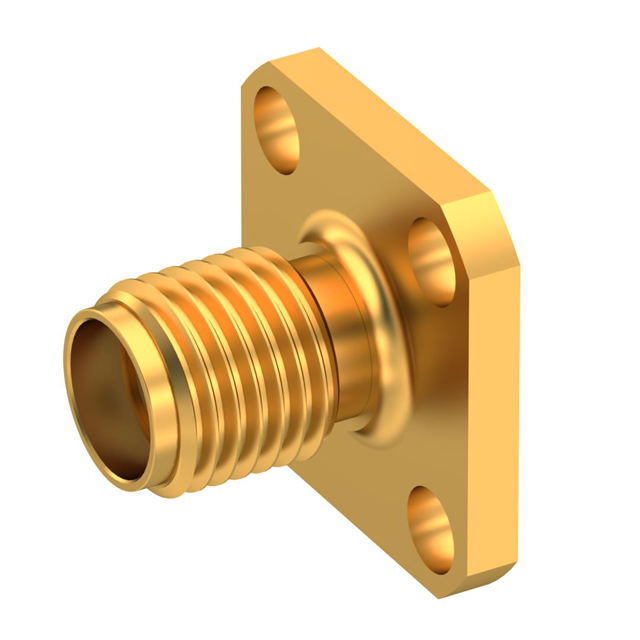

SMA / STRAIGHT JACK FEMALE GOLD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / STRAIGHT JACK FEMALE GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	9504-1213-023

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw

Part	Center Contact Material	Contact Termination	Connector Style	Housing Color	Shield Termination	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Frequency - Max [Max]	Mating Cycles	Impedance	Body Finish	Connector Type	Center Contact Plating	Mounting Feature	Body Material
Radiall USA, Inc. 9504-1213-023	Beryllium Copper	Compression	SMA	Gold	Screw	1	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	18 GHz	500	50 Ohms	Gold	Female Socket Jack	Gold	Flange	Stainless Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 60.98

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Compression
