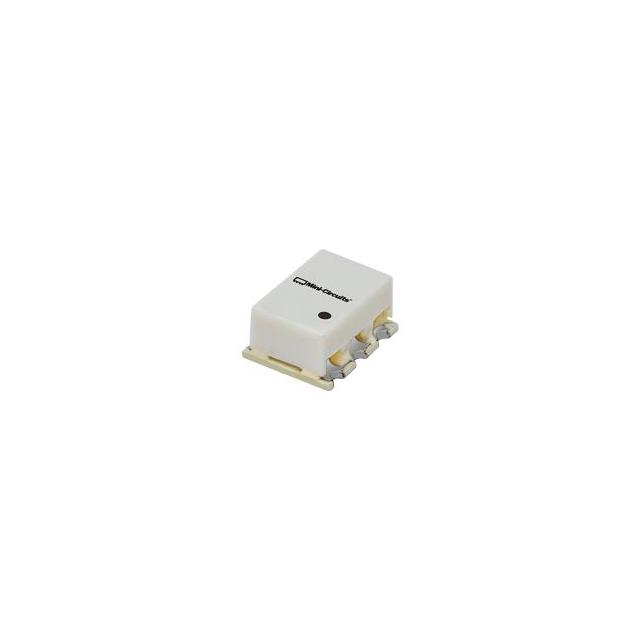

RBDC-20-63+
ActiveMINI-CIRCUITS
20 DB SMT RF TAP COUPLER, DC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RBDC-20-63+
ActiveMINI-CIRCUITS
20 DB SMT RF TAP COUPLER, DC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RBDC-20-63+ |
|---|---|
| Applications | PCS, WiMax, LTE |
| Coupler Type | Standard |
| Coupling Factor | 20 dB |
| Frequency [Max] | 6 GHz |
| Frequency [Min] | 0 Hz |
| Insertion Loss | 1.1 dB |
| Package / Case | 6-SMD, No Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 10.12 | |
| 10 | $ 9.64 | |||
| 20 | $ 9.19 | |||
| 50 | $ 8.72 | |||
| 100 | $ 8.42 | |||
| 200 | $ 7.61 | |||
| Digi-Reel® | 1 | $ 10.12 | ||
| 10 | $ 9.64 | |||
| 20 | $ 9.19 | |||
| 50 | $ 8.72 | |||
| 100 | $ 8.42 | |||
| 200 | $ 7.61 | |||
| Tape & Reel (TR) | 500 | $ 6.86 | ||
| 1000 | $ 6.65 | |||
Description
General part information
RBDC-20 Series
RF Directional Coupler LTE, PCS, WiMAX 0Hz ~ 6GHz 20dB 6-SMD, No Lead
