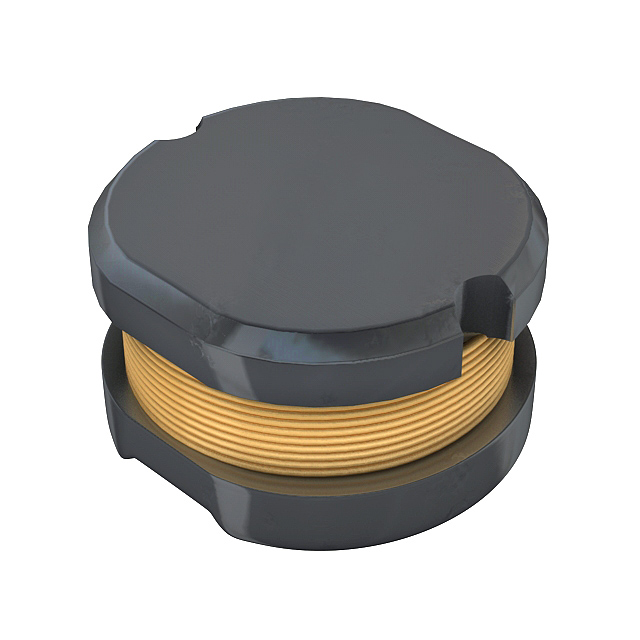

SRU3028-150Y
ActiveBourns Inc.
IND3.3X3.5X2.8MM,15UH30%0.66A,SHDSMD /TAPE & REEL - 7" REEL
Deep-Dive with AI
Search across all available documentation for this part.
SRU3028-150Y
ActiveBourns Inc.
IND3.3X3.5X2.8MM,15UH30%0.66A,SHDSMD /TAPE & REEL - 7" REEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRU3028-150Y |
|---|---|
| Current - Saturation (Isat) | 720 mA |
| Current Rating (Amps) | 660 mA |
| DC Resistance (DCR) | 230 mOhm |
| Frequency - Self Resonant | 25 MHz |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Inductance | 15 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Q @ Freq | 2.52 MHz, 18 |
| Shielding | Shielded |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [y] | 3.3 mm |
| Size / Dimension [y] | 0.13 in |
| Tolerance | 30 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.68 | |
| 10 | $ 0.56 | |||
| 100 | $ 0.46 | |||
| Digi-Reel® | 1 | $ 0.68 | ||
| 10 | $ 0.56 | |||
| 100 | $ 0.46 | |||
| Tape & Reel (TR) | 600 | $ 0.39 | ||
| 1200 | $ 0.36 | |||
| 1800 | $ 0.35 | |||
| 3000 | $ 0.34 | |||
| 4200 | $ 0.33 | |||
| 6000 | $ 0.32 | |||
| 15000 | $ 0.30 | |||
| Newark | Each (Supplied on Full Reel) | 1 | $ 0.42 | |
| 5000 | $ 0.41 | |||
| 10000 | $ 0.38 | |||
| 20000 | $ 0.35 | |||
| 30000 | $ 0.33 | |||
| 50000 | $ 0.32 | |||
Description
General part information
SRU3028 Series
15 µH Shielded Drum Core, Wirewound Inductor 660 mA 230mOhm Nonstandard
