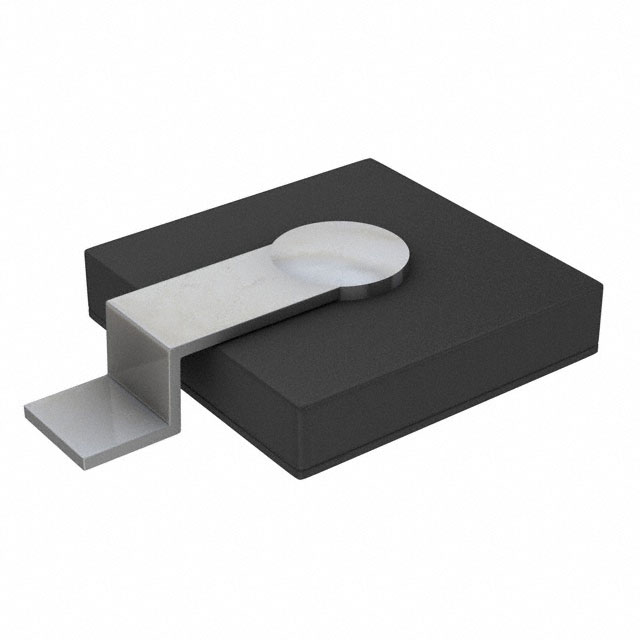

66SPB200A

Active

SMC Diode Solutions

DIODE SCHOTTKY 200V 60A SPD-2A

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE SCHOTTKY 200V 60A SPD-2A

Technical Specifications

Parameters and characteristics for this part

Specification	66SPB200A

Capacitance @ Vr, F	900 pF
Current - Average Rectified (Io)	60 A
Current - Reverse Leakage @ Vr	1.1 mA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	SPD-2A
Speed	200 mA, 500 ns
Supplier Device Package	SPD-2A
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	950 mV

Part	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Speed	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Technology	Package / Case
SMC Diode Solutions 66SPB200A	1.1 mA	900 pF	200 mA 500 ns	Surface Mount	200 V	950 mV	SPD-2A	175 ░C	-55 C	60 A	Schottky	SPD-2A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	7200	$ 6.60

General part information

Diode 200 V 60A Surface Mount SPD-2A
