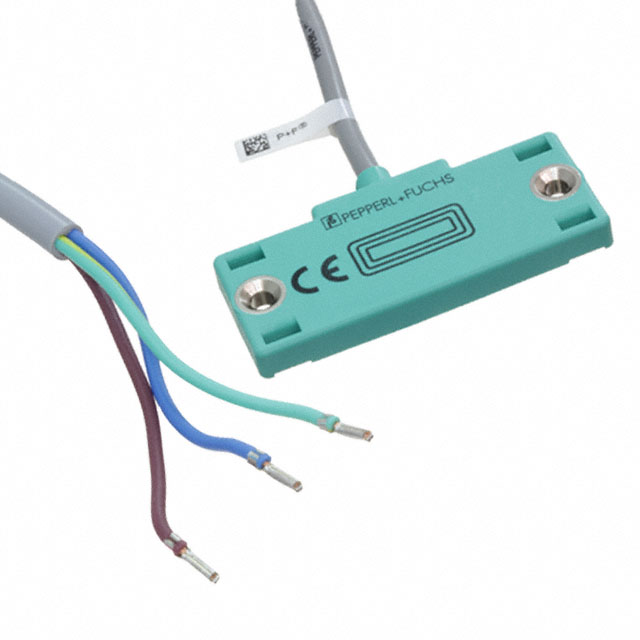

CBN5-F46-E2

Active

PEPPERL+FUCHS

CAPACITIVE PROXIMITY SENSOR, CLASSIC SERIES, FLAT, 5 MM, PNP-NO, 10 TO 30 VDC, PRE-WIRED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

CBN5-F46-E2

Active

PEPPERL+FUCHS

CAPACITIVE PROXIMITY SENSOR, CLASSIC SERIES, FLAT, 5 MM, PNP-NO, 10 TO 30 VDC, PRE-WIRED

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CBN5-F46-E2

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Polybutylene Terephthalate (PBT)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Flange Mount
Sensing Distance	0.197 in
Sensing Distance	5 mm
Sensor Type	Capacitive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

CBN5-F46 Series

Part	Package / Case	Shielding	Indicator [custom]	Material - Body	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Sensing Distance	Sensing Distance	Output Type
PEPPERL+FUCHS CBN5-F46-E2	Flange Mount	Unshielded	LED	Polybutylene Terephthalate (PBT)	70 °C	-25 °C	Capacitive	Cable	30 VDC	10 VDC	IP67	0.197 in	5 mm	PNP-NO 3-Wire

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 127.11
		10	$ 115.20
		25	$ 111.23
Newark	Each	1	$ 186.49
		5	$ 159.04
		10	$ 152.58
		25	$ 145.32
		50	$ 133.21
		100	$ 114.64

Description

General part information

CBN5-F46 Series

The CBN5-F46-E2 is a Capacitive Sensor which can be used to detect metal objects as well as nearly all other materials. The sensor is often used in applications including level, flow control for detection of liquids, grains and powders. Sensor features models with hazardous area approvals.
