4772

Active

Pololu

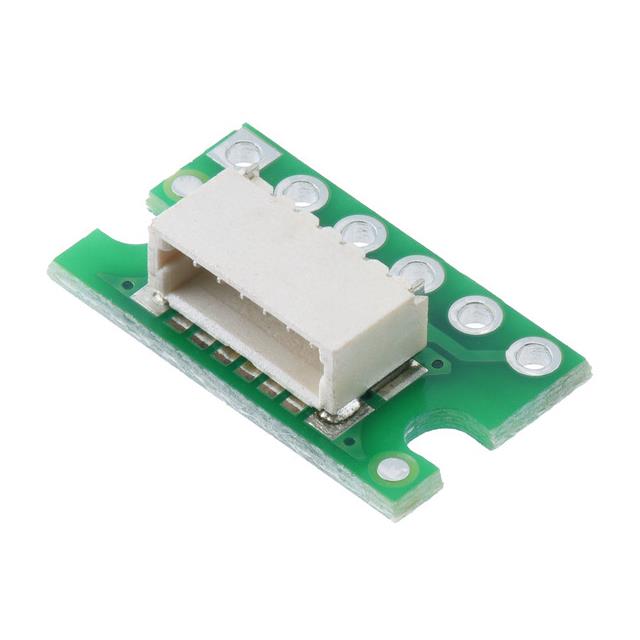

6-PIN JST SH CON CARRIER SIDE 1P

Search across all available documentation for this part.

Active

Pololu

6-PIN JST SH CON CARRIER SIDE 1P

Technical Specifications

Parameters and characteristics for this part

Part	Insulation Material	Contact Type	Number of Positions	Fastening Type	Color	Contact Termination	Features	Pitch [x]	Pitch [x]	Mounting Type	Connector Type	Number of Rows	Row Spacing [x]	Row Spacing	Note	Style	Pitch - Mating	Pitch - Mating
Pololu 1917	Plastic	Non-Gendered	20	Slide-On	Black	Crimp	Cable Clamp	2.54 mm	0.1 in	Free Hanging (In-Line)	Non-Gendered	2	0.1 in	2.54 mm	Contacts Not Included
Pololu 4770		Male Pin	6							Through Hole		1				Board to Cable/Wire	0.039 in	1 mm
Pololu 4772		Male Pin	6							Through Hole		1				Board to Cable/Wire	0.039 in	1 mm
Pololu 1908	Plastic	Non-Gendered	9	Slide-On	Black	Crimp	Cable Clamp	2.54 mm	0.1 in	Free Hanging (In-Line)	Non-Gendered	1	0.1 in	2.54 mm	Contacts Not Included
Pololu 1991	Plastic	Non-Gendered	20	Slide-On	Black	Crimp	Cable Clamp	2.54 mm	0.1 in	Free Hanging (In-Line)	Non-Gendered	1	0.1 in	2.54 mm	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.25

General part information

Connector Header Through Hole 6 position 0.039" (1.00mm)

Technical documentation and resources

No documents available
