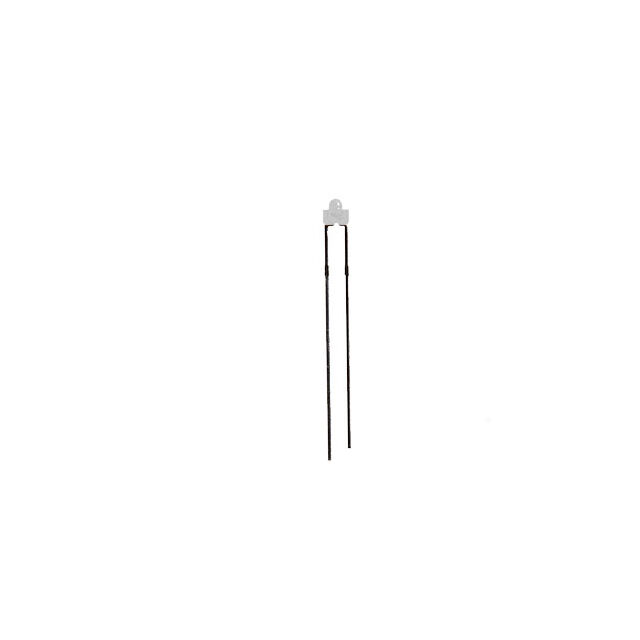

1.8BWD
ActiveBivar Inc.
GENERAL PURPOSE VISIBLE DOME-STYLE LED,BLUE,DIFFUSED,LED-2C
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1.8BWD
ActiveBivar Inc.
GENERAL PURPOSE VISIBLE DOME-STYLE LED,BLUE,DIFFUSED,LED-2C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1.8BWD |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 3 mm |
| Lens Color | Blue |
| Lens Size [diameter] | 1.8 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 10 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | 1.8mm Discrete LED |
| Viewing Angle | 50 ° |
| Voltage - Forward (Vf) (Typ) | 4 V |
| Wavelength - Peak | 430 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1.8BWD Series
Blue LED Indication - Discrete 4V Radial
