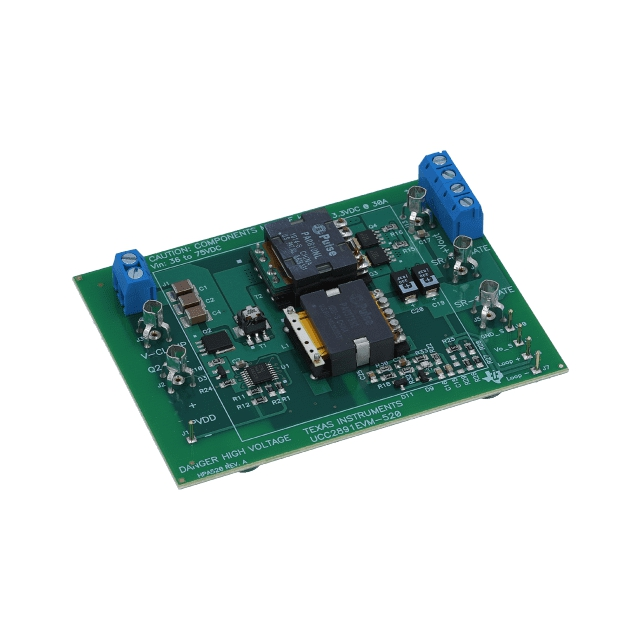

UCC2891EVM-520

Active

Texas Instruments

EVAL MODULE FOR UCC2891-520

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUCC2892PWR Datasheet

UCC2891EVM-520

Active

Texas Instruments

EVAL MODULE FOR UCC2891-520

Deep-Dive with AI

DocumentsUCC2892PWR Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UCC2891EVM-520

Board Type	Fully Populated
Current - Output	30 A
Frequency - Switching	250 kHz
Main Purpose	DC/DC, Step Down
Outputs and Type	Non-Isolated
Outputs and Type	1
Regulator Topology	Forward Converter
Supplied Contents	Board(s)
Utilized IC / Part	UCC2891
Voltage - Input [Max]	75 V
Voltage - Input [Min]	36 V
Voltage - Output	3.3 V

UCC2891 Series

110-V active clamp current mode PWM controller with P-channel clamp FET and 0.75V CS threshold

Part	Topology	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Mounting Type	Output Configuration	Duty Cycle (Max) [Max]	Supplier Device Package	Function	Output Type	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Output Phases	Number of Outputs	Frequency - Switching	Package / Case	Package / Case [x]	Package / Case [y]	Voltage - Output	Current - Output	Main Purpose	Supplied Contents	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Outputs and Type	Outputs and Type	Board Type	Regulator Topology
Texas Instruments UCC2891DG4	Flyback Forward Converter	8.5 V	16 V	Surface Mount	Isolation Capable Positive	70 %	16-SOIC	Step-Up/Step-Down	Transistor Driver	Current Limit Enable On Time Control Ramp Soft Start	85 °C	-40 °C	1	1	250 kHz	16-SOIC	0.154 in	3.9 mm
Texas Instruments UCC2891PWR	Flyback Forward Converter	8.5 V	16 V	Surface Mount	Isolation Capable Positive	70 %	16-TSSOP	Step-Up/Step-Down	Transistor Driver	Current Limit Enable On Time Control Ramp Soft Start	85 °C	-40 °C	1	1	250 kHz	16-TSSOP	0.173 in	4.4 mm
Texas Instruments UCC2891DR	Flyback Forward Converter	8.5 V	16 V	Surface Mount	Isolation Capable Positive	70 %	16-SOIC	Step-Up/Step-Down	Transistor Driver	Current Limit Enable On Time Control Ramp Soft Start	85 °C	-40 °C	1	1	250 kHz	16-SOIC	0.154 in	3.9 mm
Texas Instruments UCC2891EVM-520															250 kHz				3.3 V	30 A	DC/DC Step Down	Board(s)	75 V	36 V	UCC2891	Non-Isolated	1	Fully Populated	Forward Converter
Texas Instruments UCC2891PW	Flyback Forward Converter	8.5 V	16 V	Surface Mount	Isolation Capable Positive	70 %	16-TSSOP	Step-Up/Step-Down	Transistor Driver	Current Limit Enable On Time Control Ramp Soft Start	85 °C	-40 °C	1	1	250 kHz	16-TSSOP	0.173 in	4.4 mm
Texas Instruments UCC2891D	Flyback Forward Converter	8.5 V	16 V	Surface Mount	Isolation Capable Positive	70 %	16-SOIC	Step-Up/Step-Down	Transistor Driver	Current Limit Enable On Time Control Ramp Soft Start	85 °C	-40 °C	1	1	250 kHz	16-SOIC	0.154 in	3.9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 118.80

Description

General part information

UCC2891 Series

The UCC2891/2/3/4 family of PWM controllers is designed to simplify implementation of the various active clamp/reset switching power topologies.

The UCC289x is a peak current-mode, fixedfrequency, high-performance pulse width modulator. It includes the logic and the drive capability for the auxiliary switch with a simple method of programming the critical delays for proper active clamp operation.

The UCC2891/3 includes a 110-V start-up regulator for initial start-up and to provide keep-alive power during stand-by.

Documents

Technical documentation and resources

UCC2892PWR

Datasheet
