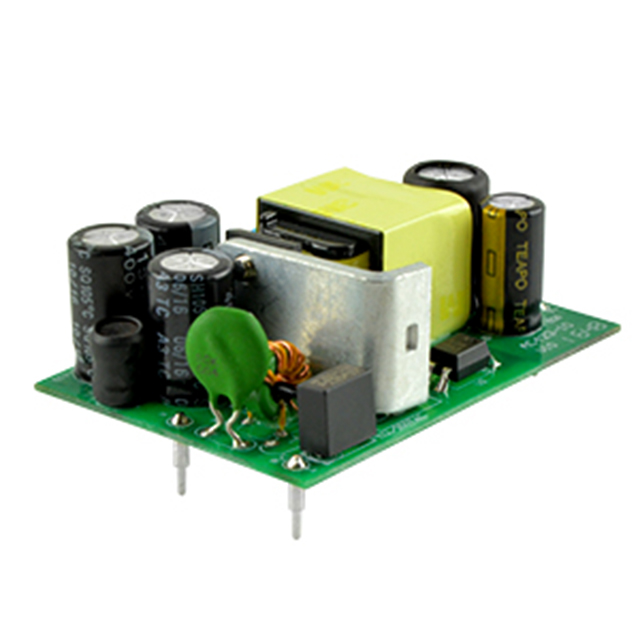

VOF-20B-S5

Active

CUI Inc.

AC/DC CONVERTER 5V 20W

Search across all available documentation for this part.

Active

CUI Inc.

AC/DC CONVERTER 5V 20W

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Type	Applications	Load Regulation	Efficiency	Line Regulation	Approval Agency	Power (Watts)	Mounting Type	Package / Case	Standard Number	Current - Output (Max) [Max]	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Features	Voltage - Input [Min]	Voltage - Input [Max]
CUI Inc. VOF-20B-S5	1	-25 °C	70 °C	Open Frame	ITE (Commercial)	1 %	82.85 %	0.5 %	CB Scheme EN FCC IEC UL	20 W	Through Hole	4-DIP Module	60950-1 61000-3-2 61000-3-3 62368-1	3.5 A	5 V	22.9 mm	0.9 "	42.3 mm	59.2 mm	2.33 in	1.67 "	Universal Input
CUI Inc. VOF-20B-S9	1	-25 °C	70 °C	Open Frame	ITE (Commercial)	1 %	85.7 %	0.5 %	CB Scheme EN FCC IEC UL	20 W	Through Hole	4-DIP Module	60950-1 61000-3-2 61000-3-3 62368-1	2.1 A	9 V	22.9 mm	0.9 "	42.3 mm	59.2 mm	2.33 in	1.67 "	Universal Input
CUI Inc. VOF-20B-S12	1	-25 °C	70 °C	Open Frame	ITE (Commercial)	1 %	85.77 %	0.5 %	CB Scheme EN FCC IEC UL	20 W	Through Hole	4-DIP Module	60950-1 61000-3-2 61000-3-3 62368-1	1.6 A	12 V	22.9 mm	0.9 "	42.3 mm	59.2 mm	2.33 in	1.67 "	Universal Input	85 VAC 120 VDC	264 VAC 370 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 12.94

General part information

Open Frame AC DC Converters 1 Output 5V 3.5A 85 ~ 264 VAC Input

Technical documentation and resources

No documents available
