DS186EQ5

Active

BANNER ENGINEERING

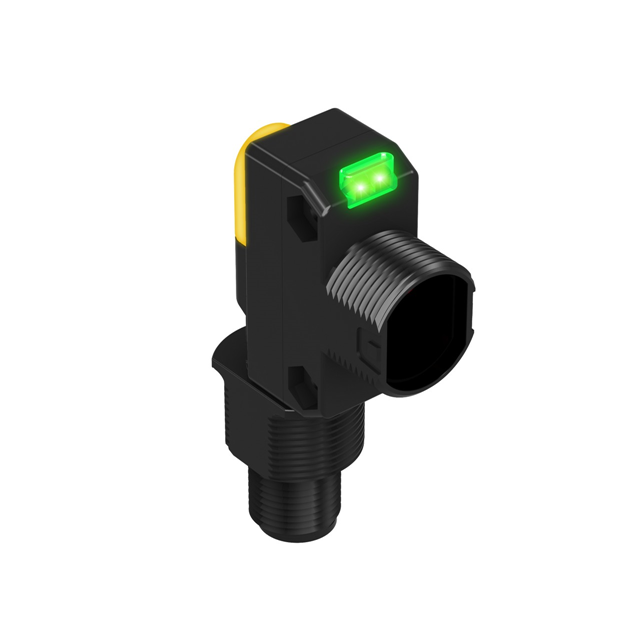

PHOTOELECTRIC SENSORS DS186EQ5 M12 QP EMITTER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSORS DS186EQ5 M12 QP EMITTER

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source	Light Source	Ingress Protection	Sensing Method	Operating Temperature [Min]	Operating Temperature [Max]	Connection Method	Sensing Distance	Sensing Distance	Cable Length	Cable Length
BANNER ENGINEERING DS186EQ5	30 VDC	10 VDC	940 nm	Infrared	NEMA 6 IEC IP67	Through-Beam	-20 C	70 °C	Connector M12	787.402 in	20 m
BANNER ENGINEERING DS186E	30 VDC	10 VDC	940 nm	Infrared	IP67 IEC NEMA 6 NEMA 6 IEC IP67	Through-Beam	-20 C	70 °C	Cable	787.402 in	20 m	78.74 in	2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 69.00
Newark	Each	1	$ 69.00

General part information

Through-Beam Optical Sensor 787.402" (20m)
