PPTC402LJBN

Obsolete

Sullins Connector Solutions

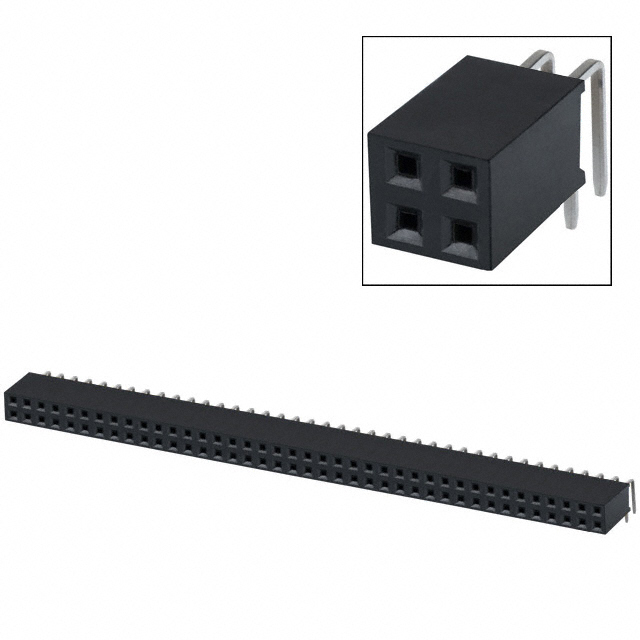

CONN HDR 80POS 0.1 TIN PCB R/A

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN HDR 80POS 0.1 TIN PCB R/A

Technical Specifications

Parameters and characteristics for this part

Specification	PPTC402LJBN

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.15 mm
Contact Length - Post	0.124 "
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	250 VDC

Part	Mounting Type	Current Rating (Amps)	Number of Positions	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Finish - Post	Contact Type	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Contact Shape	Number of Rows	Voltage Rating	Fastening Type	Contact Length - Post	Contact Length - Post	Termination	Contact Material	Material Flammability Rating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Insulation Height	Insulation Height
Sullins Connector Solutions PPTC402LJBN	Through Hole Right Angle	3 A	80	0.1 in	2.54 mm	All	Tin	Female Socket	Black	2.54 mm	0.1 in	Header	Square	2	250 VDC	Push-Pull	3.15 mm	0.124 "	Solder	Phosphor Bronze	UL94 V-0	Polyester	-40 °C	105 ░C
Sullins Connector Solutions PPTC402LFBN-RC	Through Hole	3 A	80	0.1 in	2.54 mm	All	Tin	Female Socket	Black	2.54 mm	0.1 in	Header	Square	2	250 VDC	Push-Pull	3.2 mm		Solder	Phosphor Bronze	UL94 V-0	Polyester	-40 °C	105 ░C	0.126 in	0.335 "	8.51 mm
Sullins Connector Solutions PPTC402LJBN-RC	Through Hole Right Angle	3 A	80	0.1 in	2.54 mm	All	Tin	Female Socket	Black	2.54 mm	0.1 in	Header	Square	2	250 VDC	Push-Pull	3.15 mm	0.124 "	Solder	Phosphor Bronze	UL94 V-0	Polyester	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

80 Position Header Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
