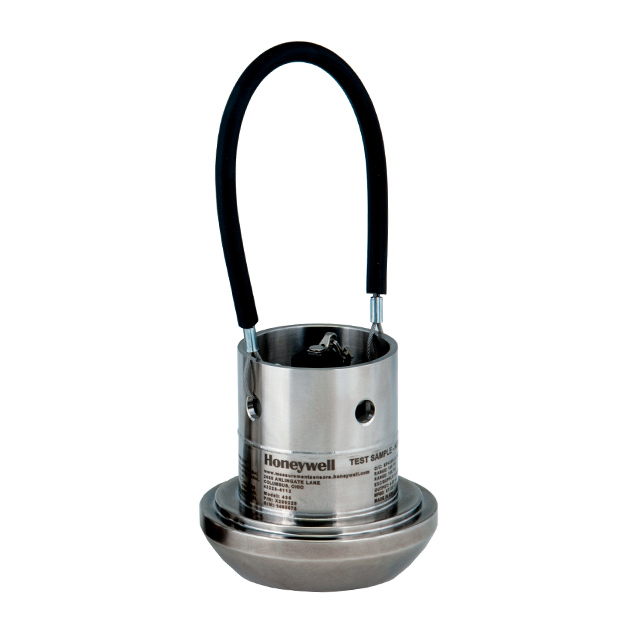

060-P458-04

Active

Honeywell Sensing and Productivity Solutions T&M

HAMMER UNION PRESSURE SENSORS

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions T&M

HAMMER UNION PRESSURE SENSORS

Technical Specifications

Parameters and characteristics for this part

Part	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Size [custom]	Port Size [custom]	Operating Pressure [x]	Operating Pressure [x]	Output Type	Output [Max]	Output [Min]	Pressure Type	Applications	Features	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Port Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style
Honeywell Sensing and Productivity Solutions T&M 060-P458-04	155132.04 kPa	22500 PSI	51 mm	2 "	15000 PSI	103421.36 kPa	Analog Current	20 mA	4 mA	Vented Gauge	Industrial Automation	Temperature Compensated	125 °C	-40 °C	0.2 %	Weco® 1502 Hammer Union	9 V	28 V	Connector
Honeywell Sensing and Productivity Solutions T&M 060-P458-03	103421.36 kPa	15000 PSI	51 mm	2 "	10000 PSI	68947.57 kPa	Analog Current	20 mA	4 mA	Vented Gauge	Industrial Automation	Temperature Compensated	125 °C	-40 °C	0.2 %	Weco® 1502 Hammer Union	9 V	28 V	Connector
Honeywell Sensing and Productivity Solutions T&M 060-P458-02	62052.82 kPa	9000 PSI	51 mm	2 "	6000 PSI	41368.54 kPa	Analog Current	20 mA	4 mA	Vented Gauge	Industrial Automation	Temperature Compensated	125 °C	-40 °C	0.2 %	Weco® 1502 Hammer Union	9 V	28 V	Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1779.87

General part information

HAMMER UNION PRESSURE SENSORS

Technical documentation and resources

No documents available
