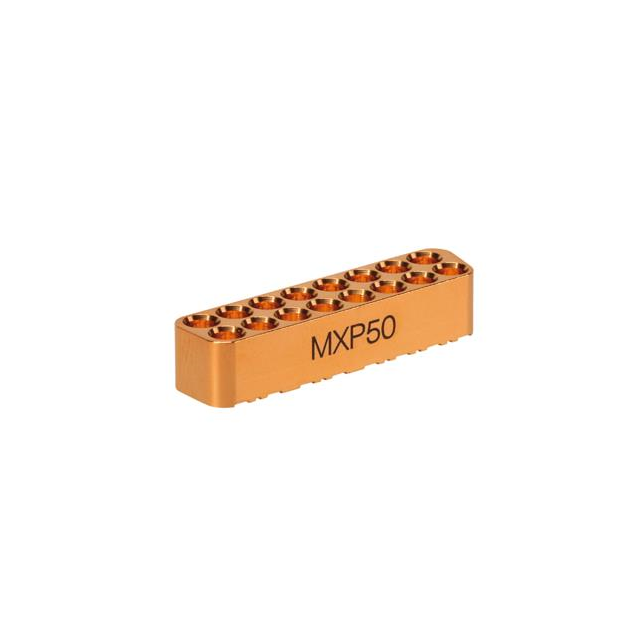

2X8A_81_MXP-S50-0-4/111_NE
ActiveHuber+Suhner, Inc.
RF COAX CONN, PLUG, PCB, 50 OHM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2X8A_81_MXP-S50-0-4/111_NE
ActiveHuber+Suhner, Inc.
RF COAX CONN, PLUG, PCB, 50 OHM ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2X8A_81_MXP-S50-0-4/111_NE |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MXP |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 50 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount |
| Number of Ports [custom] | 16 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
2X8A_81_MXP Series
MXP Connector Plug, Male Pin 50 Ohms Surface Mount Solder
