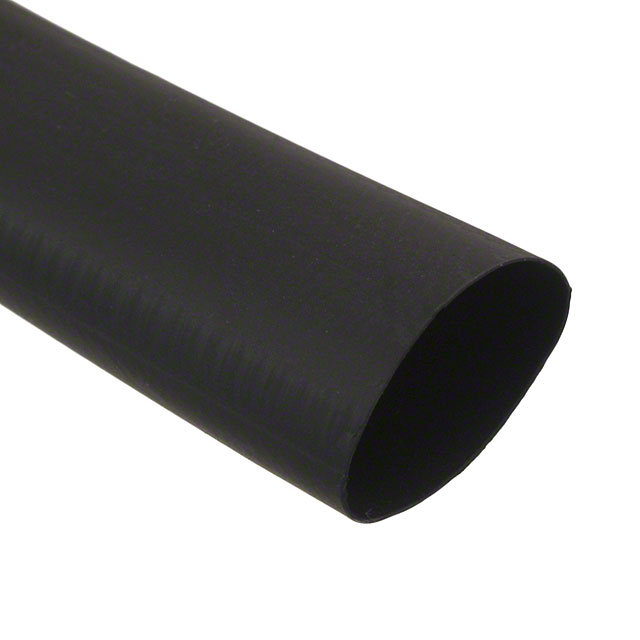

SFTW203 1/2" BL SPL

Active

3M (TC)

HEATSHRNK SFTW203 1/2X4" 50=50PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHeat Shrink Tubing and Devices Catalog Datasheet

SFTW203 1/2" BL SPL

Active

3M (TC)

HEATSHRNK SFTW203 1/2X4" 50=50PC

Deep-Dive with AI

DocumentsHeat Shrink Tubing and Devices Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFTW203 1/2" BL SPL

Color	Black
Features	Flame Retardant, Chemical Resistant, Corrosive Resistant, Self Extinguishing
Inner Diameter - Recovered [diameter]	3.99 mm
Inner Diameter - Recovered [diameter]	0.157 in
Inner Diameter - Supplied [diameter]	0.472 in
Inner Diameter - Supplied [diameter]	11.99 mm
Length	15.2 m, 25.4 mm, 19.05 mm
Length	50 ft, 0.083 ft, 0.062 '
Length	Enter Number of Feet in Order Quantity
Length	1 in, 0.75 "
Length [x]	61 m, 101.6 mm
Length [x]	200 ft, 0.333 ft
Length [x]	4 "
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.76 mm
Recovered Wall Thickness	0.03 "
Shelf Life	120 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	100 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Spool Size	61 m
Spool Size	200 '
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Tubing, Flexible

SFTW203 Series

Part	Shelf Life Start	Color	Type	Length	Length	Spool Size	Spool Size	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Material	Features	Length	Shelf Life	Shrink Temperature	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Length	Length [x]	Length [x]	Length [x]	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered	Inner Diameter - Recovered	Length	Recovered Wall Thickness
3M (TC) SFTW203 1/8" BL SPL	Date of Manufacture	Black	Tubing Flexible	1.52 m 7.6 m 15.2 m 25.4 mm	0.083 ft 5 ' 25 ft 50 ft	500 '	152.4 m	3 mm	0.118 in	135 °C	-55 °C	Polyolefin (PO)	Chemical Resistant Corrosive Resistant Flame Retardant Self Extinguishing	1 in	120 Months	100 °C	1	3	0.039 in	0.99 mm	27 °C 80 °F	10 °C	Enter Number of Feet in Order Quantity	4 "	0.333 ft	101.6 mm	0.56 mm	0.022 "
3M (TC) SFTW-203-1/4-48-BLACK	Date of Manufacture	Black	Tubing Flexible					5.99 mm	0.236 in	135 °C	-55 °C	Polyolefin (PO)	Chemical Resistant Corrosive Resistant Flame Retardant Self Extinguishing		120 Months	100 °C	1	3			27 °C 80 °F	10 °C			4 ft	1.22 m	0.66 mm	0.026 "	0.079 in	2.01 mm
3M (TC) SFTW203 1/16" BL SPL	Date of Manufacture	Black	Tubing Flexible	1.52 m 7.6 m 15.2 m 25.4 mm 50.8 mm 152.4 mm 304.8 m	0.083 ft 0.167 ' 5 ' 25 ft 50 ft 1000 ft	1000 ft	304.8 m	1.5 mm	0.059 in	135 °C	-55 °C	Polyolefin (PO)	Chemical Resistant Corrosive Resistant Flame Retardant Self Extinguishing	1 in 2 " 6 "	120 Months	100 °C	1	3	0.02 in	0.51 mm	27 °C 80 °F	10 °C	Enter Number of Feet in Order Quantity	4 "	0.333 ft	101.6 mm	0.46 mm	0.018 in			0.5 '
3M (TC) SFTW-203-1 1/2-BLACK	Date of Manufacture	Black	Tubing Flexible							135 °C	-55 °C	Polyolefin (PO)	Chemical Resistant Corrosive Resistant Flame Retardant Self Extinguishing		120 Months	100 °C	1	3			27 °C 80 °F	10 °C			100 ft	30.5 m	1.14 mm	0.045 in	0.512 in	13 mm
3M (TC) SFTW203 1/2" BL SPL	Date of Manufacture	Black	Tubing Flexible	15.2 m 19.05 mm 25.4 mm	0.062 ' 0.083 ft 50 ft	200 '	61 m	11.99 mm	0.472 in	135 °C	-55 °C	Polyolefin (PO)	Chemical Resistant Corrosive Resistant Flame Retardant Self Extinguishing	0.75 " 1 in	120 Months	100 °C	1	3	0.157 in	3.99 mm	27 °C 80 °F	10 °C	Enter Number of Feet in Order Quantity	4 "	0.333 ft 200 ft	61 m 101.6 mm	0.76 mm					0.03 "
3M (TC) SFTW-203-1/8-48-BLACK	Date of Manufacture	Black	Tubing Flexible					3 mm	0.118 in	135 °C	-55 °C	Polyolefin (PO)	Chemical Resistant Corrosive Resistant Flame Retardant Self Extinguishing		120 Months	100 °C	1	3	0.039 in	0.99 mm	27 °C 80 °F	10 °C			4 ft	1.22 m	0.56 mm	0.022 "
3M (TC) SFTW203 1/4" BL SPL	Date of Manufacture	Black	Tubing Flexible	1.52 m 7.6 m 38.1 mm 76.2 mm 152.4 mm	0.125 ' 0.25 ft 5 ' 25 ft	200 '	61 m	5.99 mm	0.236 in	135 °C	-55 °C	Polyolefin (PO)	Chemical Resistant Corrosive Resistant Flame Retardant Self Extinguishing	1.5 " 3 " 6 "	120 Months	100 °C	1	3			27 °C 80 °F	10 °C	Enter Number of Feet in Order Quantity	4 "	0.333 ft 200 ft	61 m 101.6 mm	0.66 mm	0.026 "	0.079 in	2.01 mm	0.5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.05
		5	$ 45.04
		10	$ 42.04
		25	$ 39.94
		50	$ 0.08
		50	$ 0.10
		50	$ 39.04
		50	$ 0.28
		100	$ 0.26
		100	$ 0.07
		100	$ 0.09
		100	$ 38.14
		150	$ 0.09
		150	$ 0.07
		150	$ 0.25
		200	$ 0.85
		250	$ 0.07
		250	$ 0.08
		250	$ 0.23
		350	$ 0.08
		350	$ 0.22
		350	$ 0.06
		400	$ 0.78
		500	$ 0.07
		500	$ 0.21
		500	$ 0.06
		600	$ 0.74
		1000	$ 0.73
		1250	$ 0.19
		1250	$ 0.07
		1250	$ 0.05
		2500	$ 0.05
		2500	$ 0.06
		2500	$ 0.18
		5000	$ 0.05
		5000	$ 0.06
	Digi-Spool®, Continuous Spool	1	$ 2.59
		5	$ 2.36
		10	$ 1.79
		25	$ 1.70
		50	$ 1.60
		100	$ 1.51

Description

General part information

SFTW203 Series

Heat Shrink Tubing, Flexible 0.472" (11.99mm) 3 to 1 Black 0.333' (101.60mm, 4.00")

Documents

Technical documentation and resources

Heat Shrink Tubing and Devices Catalog

Datasheet
