Q2-Z-1/16-01-SS1000FT
ActiveQualtek
HEATSHRINK 1/16" X 1000' BLACK
Deep-Dive with AI
Search across all available documentation for this part.
Q2-Z-1/16-01-SS1000FT
ActiveQualtek
HEATSHRINK 1/16" X 1000' BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q2-Z-1/16-01-SS1000FT |
|---|---|
| Color | Black |
| Features | Flame Retardant |
| Inner Diameter - Recovered [diameter] | 0.79 mm |
| Inner Diameter - Recovered [diameter] | 0.031 in |
| Inner Diameter - Supplied [diameter] | 0.063 in |
| Inner Diameter - Supplied [diameter] | 1.6 mm |
| Length | 1000 ft |
| Length | 304.8 m |
| Material | Polyolefin (PO) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 0.014 " |
| Recovered Wall Thickness | 0.36 mm |
| Shelf Life | 144 Months |
| Shrink Temperature | 70 °C |
| Shrinkage Ratio | 2 to 1 |
| Storage/Refrigeration Temperature [Max] | 40 °C |
| Storage/Refrigeration Temperature [Min] | -10 °C, -50 °F |
| Type | Tubing, Flexible |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 56.96 | |
| 2 | $ 52.38 | |||
| 3 | $ 49.88 | |||
| 5 | $ 46.89 | |||
| 7 | $ 45.03 | |||
| 10 | $ 43.13 | |||
| 25 | $ 38.61 | |||
| 50 | $ 36.75 | |||
Description
General part information
Q2-Z-1/16 Series

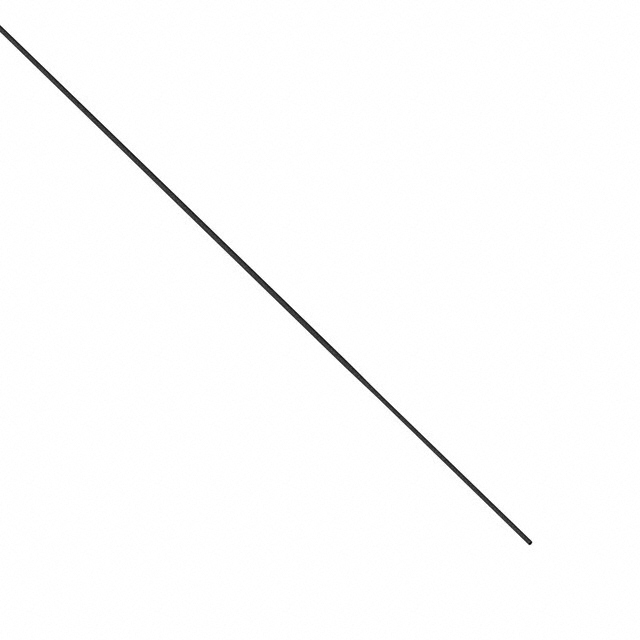

Heat Shrink Tubing, Flexible 0.063" (1.60mm) 2 to 1 Black 1000.0' (304.8m)
