800-12-47D-BL-0008F

Obsolete

CnC Tech, LLC

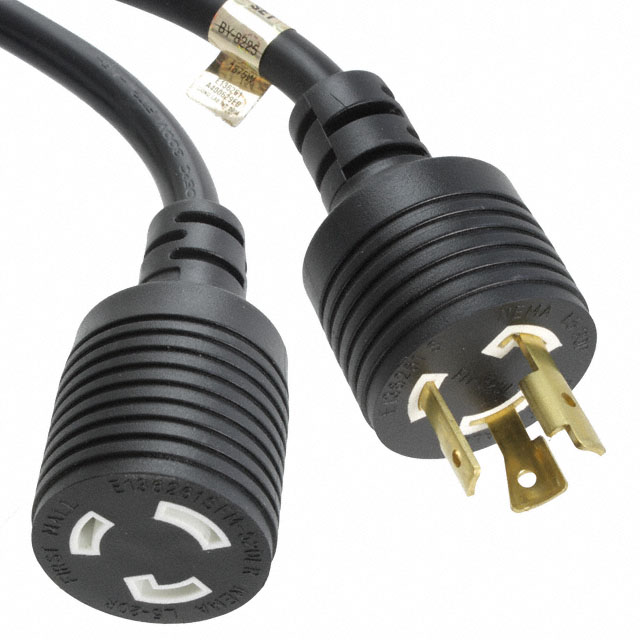

CRD 12AWG NMA L5-20P - L5-20R 8'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

800-12-47D-BL-0008F

Obsolete

CnC Tech, LLC

CRD 12AWG NMA L5-20P - L5-20R 8'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	800-12-47D-BL-0008F

1st Connector	NEMA L5-20P
2nd Connector	NEMA L5-20R
Approval Agency Marking	CSA, cUL, UL
Approved Countries	United States, Canada
Color	Black
Cord Type	SJT
Current Rating (Amps)	20 A
Length [x]	2.44 m
Length [x]	8 ft
Number of Conductors	3
Operating Temperature	105 C
Shielding	Unshielded
Style	Male Pins, Female Sockets
Voltage Rating	125 VDC
Wire Gauge	12 AWG

800-12 Series

Part	2nd Connector	Approval Agency Marking	Shielding	Length	Length	Cord Type	Wire Gauge	Approved Countries	Current Rating (Amps)	Color	1st Connector	Style	Number of Conductors	Operating Temperature	Voltage Rating	Length [x]	Length [x]
CnC Tech, LLC 800-12-32D-BL-0006F-1	IEC 320-C19	cUL UL	Unshielded	6 ft	1.83 m	SJT	12 AWG	Canada United States	20 A	Black	IEC 320-C20	Female Sockets Male Pins	3	105 C	250 VDC
CnC Tech, LLC 800-12-32D-BL-0004F-1	IEC 320-C19	cUL UL	Unshielded			SJT	12 AWG	Canada United States	20 A	Black	IEC 320-C20	Female Sockets Male Pins	3	105 C	250 VDC	1.22 m	4 ft
CnC Tech, LLC 800-12-38D-BL-08.2F	IEC 320-C19	CSA cUL UL	Unshielded			SJT	12 AWG	Canada United States	20 A	Black	NEMA L5-20P	Female Sockets Male Pins	3	105 C	125 VDC	2.5 m	8.2 '
CnC Tech, LLC 800-12-32D-BL-0006F	IEC 320-C19	CSA cUL UL	Unshielded	6 ft	1.83 m	SJT	12 AWG	Canada United States	20 A	Black	IEC 320-C20	Female Sockets Male Pins	3	105 C	250 VDC
CnC Tech, LLC 800-12-47D-BL-0008F	NEMA L5-20R	CSA cUL UL	Unshielded			SJT	12 AWG	Canada United States	20 A	Black	NEMA L5-20P	Female Sockets Male Pins	3	105 C	125 VDC	2.44 m	8 ft
CnC Tech, LLC 800-12-32D-BL-0004F	IEC 320-C19	CSA cUL UL	Unshielded			SJT	12 AWG	Canada United States	20 A	Black	IEC 320-C20	Female Sockets Male Pins	3	105 C	250 VDC	1.22 m	4 ft
CnC Tech, LLC 800-12-32D-BL-0002F	IEC 320-C19	CSA cUL UL	Unshielded		609.6 mm	SJT	12 AWG	Canada United States	20 A	Black	IEC 320-C20	Female Sockets Male Pins	3	105 C	250 VDC		2 '
CnC Tech, LLC 800-12-32D-BL-0008F	IEC 320-C19	CSA cUL UL	Unshielded			SJT	12 AWG	Canada United States	20 A	Black	IEC 320-C20	Female Sockets Male Pins	3	105 C	250 VDC	2.44 m	8 ft
CnC Tech, LLC 800-12-32D-BL-0008F-1	IEC 320-C19	cUL UL	Unshielded			SJT	12 AWG	Canada United States	20 A	Black	IEC 320-C20	Female Sockets Male Pins	3	105 C	250 VDC	2.44 m	8 ft
CnC Tech, LLC 800-12-32D-BL-0003F-1	IEC 320-C19	cUL UL	Unshielded		91.44 cm	SJT	12 AWG	Canada United States	20 A	Black	IEC 320-C20	Female Sockets Male Pins	3	105 C	250 VDC		3 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

800-12 Series

8.00' (2.44m) Power Cord Black NEMA L5-20P To NEMA L5-20R SJT
