RJSGE4887411
ActiveAmphenol ICC (Commercial Products)

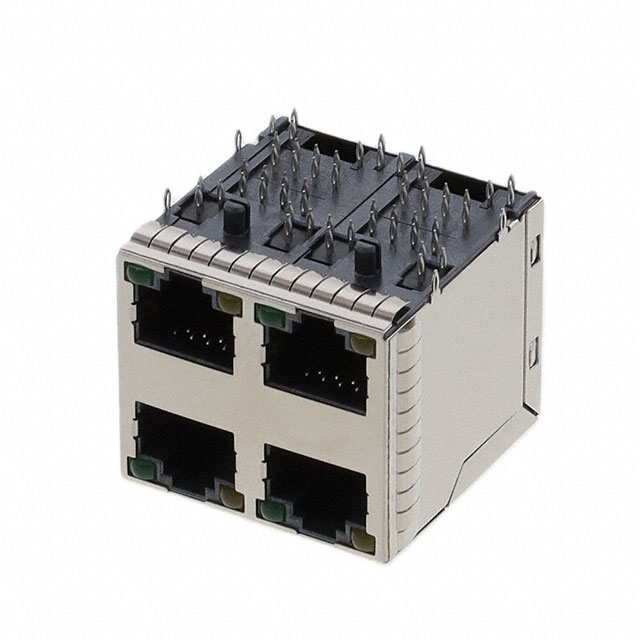

8P8C, CAT5E, PRESSFIT, 2X2 STACK
Deep-Dive with AI
Search across all available documentation for this part.
RJSGE4887411
ActiveAmphenol ICC (Commercial Products)
8P8C, CAT5E, PRESSFIT, 2X2 STACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RJSGE4887411 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Housing Material | Thermoplastic |
| LED Color | Yellow - Green |
| Mounting Type | Through Hole |
| Number of Ports | 4 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | 90 ° |
| Ratings | Cat5e |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Up and Down |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.28 | |
| 10 | $ 12.64 | |||
Description
General part information
RJSGE488 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5e
