GD25LD80CEIGR

Active

GigaDevice Semiconductor (HK) Limited

IC FLSH 8MBIT SPI/DUAL I/O 8USON

Search across all available documentation for this part.

Active

GigaDevice Semiconductor (HK) Limited

IC FLSH 8MBIT SPI/DUAL I/O 8USON

Technical Specifications

Parameters and characteristics for this part

Specification	GD25LD80CEIGR

Clock Frequency	50 MHz
Memory Format	FLASH
Memory Interface	SPI - Dual I/O
Memory Organization [custom]	1 M
Memory Organization [custom]	8 bits
Memory Size	1024 KB
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-XFDFN Exposed Pad

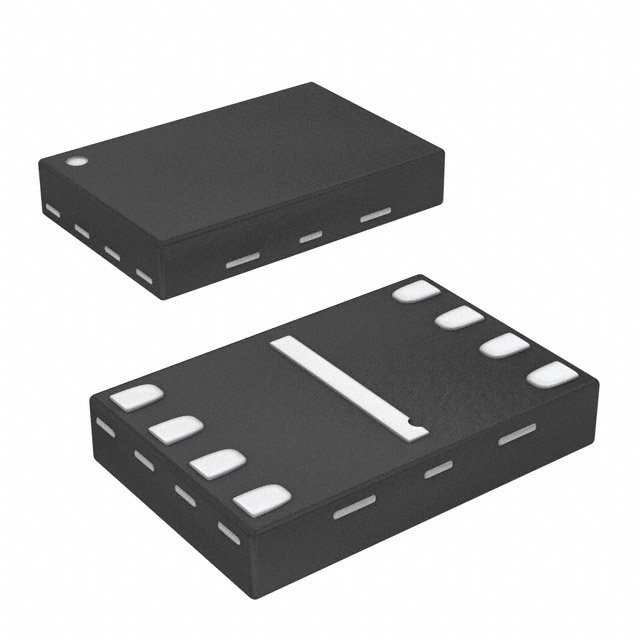

Supplier Device Package	8-USON (2x3)
Technology	FLASH - NOR
Voltage - Supply [Max]	2 V
Voltage - Supply [Min]	1.65 V
Write Cycle Time - Word, Page [custom]	60 µs
Write Cycle Time - Word, Page [custom]	6 ms

Part	Access Time	Memory Organization [custom]	Memory Organization [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Clock Frequency	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [x]	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size	Memory Type	Memory Format	Technology	Mounting Type	Memory Interface
GigaDevice Semiconductor (HK) Limited GD25LD80ETIGY	12 ns	1 M	8 bits	85 °C	-40 °C	50 MHz	8-SOP	8-SOIC	3.9 mm	0.154 in	6 ms	100 µs	2 V	1.65 V	1024 KB	Non-Volatile	FLASH	FLASH - NOR (SLC)	Surface Mount	SPI - Dual I/O
GigaDevice Semiconductor (HK) Limited GD25LD80CTIG		1 M	8 bits	85 °C	-40 °C	50 MHz	8-SOP	8-SOIC	3.9 mm	0.154 in	6 ms	60 µs	2 V	1.65 V	1024 KB	Non-Volatile	FLASH	FLASH - NOR	Surface Mount	SPI - Dual I/O
GigaDevice Semiconductor (HK) Limited GD25LD80CEIGR		1 M	8 bits	85 °C	-40 °C	50 MHz	8-USON (2x3)	8-XFDFN Exposed Pad			6 ms	60 µs	2 V	1.65 V	1024 KB	Non-Volatile	FLASH	FLASH - NOR	Surface Mount	SPI - Dual I/O
GigaDevice Semiconductor (HK) Limited GD25LD80CKIGR	12 ns	1 M	8 bits	85 °C	-40 °C	50 MHz	8-USON (1.5x1.5)	8-XFDFN Exposed Pad			6 ms	97 µs	2 V	1.65 V	1024 KB	Non-Volatile	FLASH	FLASH - NOR (SLC)	Surface Mount	SPI - Dual I/O

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	9000	$ 0.40

General part information

FLASH - NOR Memory IC 8Mbit SPI - Dual I/O 50 MHz 8-USON (2x3)
