1458D3B

Active

Hammond Manufacturing

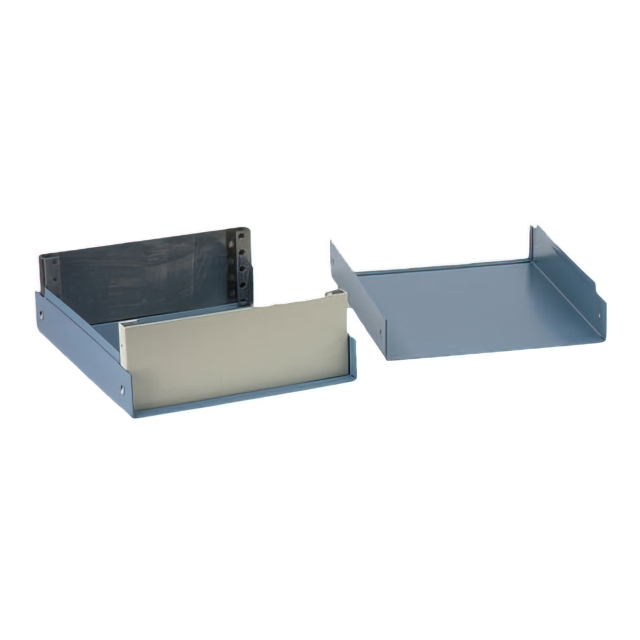

BOX STEEL BLUE 8"L X 8"W

Deep-Dive with AI

Search across all available documentation for this part.

Documents1458 Series 1458 Series

1458D3B

Active

Hammond Manufacturing

BOX STEEL BLUE 8"L X 8"W

Deep-Dive with AI

Documents1458 Series 1458 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1458D3B

Area (L x W)	413 cm²
Area (L x W)	64 in²
Color	Blue
Container Type	Box
Design	Split Sides and End Panel(s)
Features	Separate Panel or Cover Thickness
Height [z]	76.2 mm
Height [z]	3 in
Material	Metal, Steel
Size / Dimension [x]	203.2 mm
Size / Dimension [x]	8 "
Size / Dimension [y]	203.2 mm
Size / Dimension [y]	8 in
Thickness	18 Gauge
Weight	1.2 kg
Weight	2.7 lbs

1458 Series

Part	Container Type	Weight	Weight	Material	Thickness	Design	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Color	Features	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Area (L x W) [custom]	Area (L x W) [custom]	Size / Dimension [y]
Hammond Manufacturing 1458D3B	Box	1.2 kg	2.7 lbs	Metal Steel	18 Gauge	Split Sides and End Panel(s)	203.2 mm	203.2 mm	8 "	8 in	Blue	Separate Panel or Cover Thickness	413 cm²	64 in²	76.2 mm	3 in
Hammond Manufacturing 1458VE5	Box	1.9 kg	4.1 lbs	Metal Steel	18 Gauge	Split Sides and End Panel(s)	254 mm	203.2 mm	10 in	8 in	Black	Separate Panel or Cover Thickness Vented Panels	516 cm²	80 in²	127 mm	5 in
Hammond Manufacturing 1458D5	Box	1.5 kg	3.4 lbs	Metal Steel	18 Gauge	Split Sides and End Panel(s)	203.2 mm	203.2 mm	8 "	8 in	Black	Separate Panel or Cover Thickness	413 cm²	64 in²	127 mm	5 in
Hammond Manufacturing 1458VE3B	Box	1.5 kg	3.4 lbs	Metal Steel	18 Gauge	Split Sides and End Panel(s)	254 mm	203.2 mm	10 in	8 in	Blue	Separate Panel or Cover Thickness Vented Panels	516 cm²	80 in²	76.2 mm	3 in
Hammond Manufacturing 1458VE4	Box	1.7 kg	3.7 lbs	Metal Steel	18 Gauge	Split Sides and End Panel(s)	254 mm	203.2 mm	10 in	8 in	Black	Separate Panel or Cover Thickness Vented Panels	516 cm²	80 in²	101.6 mm	101.6 mm
Hammond Manufacturing 1458VD5	Box	1.5 kg	3.4 lbs	Metal Steel	18 Gauge	Split Sides and End Panel(s)	203.2 mm	203.2 mm	8 "	8 in	Black	Separate Panel or Cover Thickness Vented Panels	413 cm²	64 in²	127 mm	5 in
Hammond Manufacturing 1458VB4	Box	635 g	1.4 lbs	Metal Steel	18 Gauge	Split Sides and End Panel(s)	152.4 mm		6 in	4 "	Black	Separate Panel or Cover Thickness Vented Panels			101.6 mm	101.6 mm	155 cm²	24 in²	101.6 mm
Hammond Manufacturing 1458VG3B	Box	1.5 kg	3.2 lbs	Metal Steel	18 Gauge	Split Sides and End Panel(s)	254 mm	203.2 mm	10 in	8 in	Blue	Separate Panel or Cover Thickness Vented Panels	516 cm²	80 in²	76.2 mm	3 in
Hammond Manufacturing 1458VD4	Box	1.5 kg	3.4 lbs	Metal Steel	18 Gauge	Split Sides and End Panel(s)	203.2 mm	203.2 mm	8 "	8 in	Black	Separate Panel or Cover Thickness Vented Panels	413 cm²	64 in²	101.6 mm	101.6 mm
Hammond Manufacturing 1458G4B	Box	1.6 kg	3.6 lbs	Metal Steel	18 Gauge	Split Sides and End Panel(s)	254 mm	203.2 mm	10 in	8 in	Blue	Separate Panel or Cover Thickness	516 cm²	80 in²	101.6 mm	101.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.50
		5	$ 52.96
		10	$ 49.43
		25	$ 48.55
		50	$ 47.67
		100	$ 46.96

Description

General part information

1458 Series

Box Metal, Steel Blue Split Sides and End Panel(s) 8.000" L x 8.000" W (203.20mm x 203.20mm) X 3.000" (76.20mm)

Documents

Technical documentation and resources

1458 Series

Datasheet

1458 Series

Datasheet
