TR9CZ8421CCPIMR6B
ActiveGlobTek, Inc.

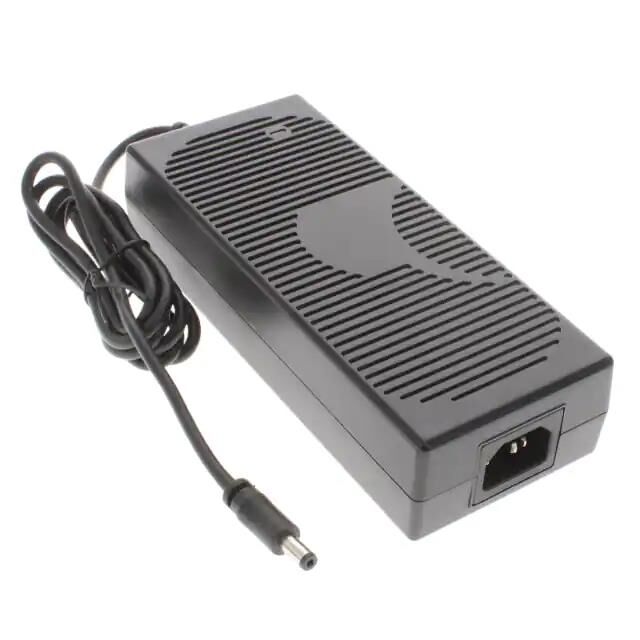

AC/DC DESKTOP ADAPTER 19V 160W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TR9CZ8421CCPIMR6B
ActiveGlobTek, Inc.
AC/DC DESKTOP ADAPTER 19V 160W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TR9CZ8421CCPIMR6B |
|---|---|
| Applications | Household Appliances, ITE (Commercial), Medical |
| Approval Agency | cETLus, EAC, UKRSepro, FCC, S-Mark, RCM, ETL, CE, VCCI, CCC, CB, PSE |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 8.42 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 150 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 160 W |
| Region Utilized | International |
| Size / Dimension [x] | 6.95 in |
| Size / Dimension [x] | 176.5 mm |
| Size / Dimension [y] | 2.91 " |
| Size / Dimension [y] | 74 mm |
| Size / Dimension [z] | 1.58 " |
| Size / Dimension [z] | 40 mm |
| Standard Number | 62368-1, 60335-1, 60950-1, 60601-1-11, 60601-1-2 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 19 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 58.18 | |
| 5 | $ 57.27 | |||
| 20 | $ 54.54 | |||
| 40 | $ 50.90 | |||
| 60 | $ 49.99 | |||
| 100 | $ 48.36 | |||
Description
General part information
TR9CZ8421 Series
19V 160 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
