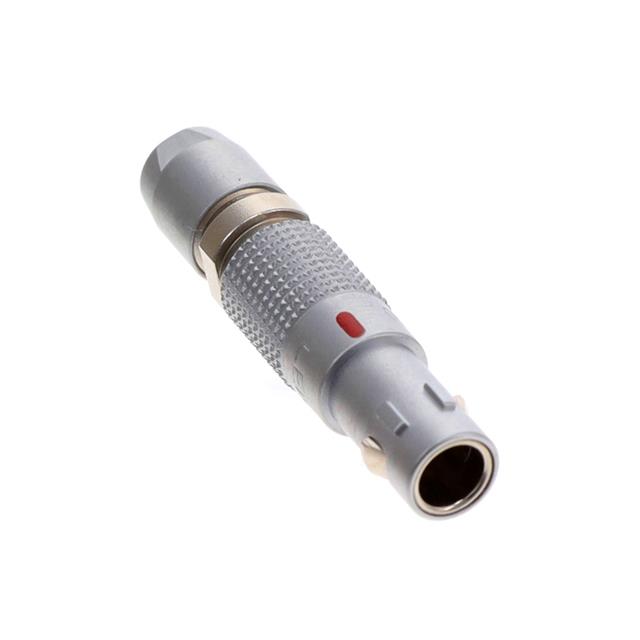

FGB.00.304.CLAD35

Active

LEMO

CONN PLUG MALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	FGB.00.304.CLAD35

Backshell Material, Plating	Brass, Chrome
Cable Opening [diameter]	3.5 mm
Cable Opening [diameter]	0.138 in, 0.106 in
Cable Opening [diameter]	2.7 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	B
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	304
Shielding	Shielded

Part	Contact Material	Backshell Material, Plating	Orientation	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish - Mating	Shell Finish	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Shell Size - Insert	Shell Material	Color	Insert Material	Ingress Protection	Fastening Type	Shielding	Mounting Type	Current Rating (Amps)	Primary Material	Features
LEMO FGB.00.304.CLAD35	Brass	Brass Chrome	B	4	1 µm	39.4 µin	UL94 V-0	-55 °C	250 °C	Male Pins Plug	Gold	Chrome	3.5 mm	0.106 in 0.138 in	2.7 mm	304	Brass	Silver	Polyetheretherketone (PEEK)	IP50	Push-Pull	Shielded	Free Hanging (In-Line)	2 A	Metal	Backshell
LEMO FGB.00.304.CLAD35Z	Brass	Brass Chrome	B	4	1 µm	39.4 µin	UL94 V-0	-55 °C	250 °C	Male Pins Plug	Gold	Chrome	3.5 mm	0.106 in 0.138 in	2.7 mm	304	Brass	Silver	Polyetheretherketone (PEEK)	IP50	Push-Pull	Shielded	Free Hanging (In-Line)	2 A	Metal	Backshell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Male Pins Solder Cup
