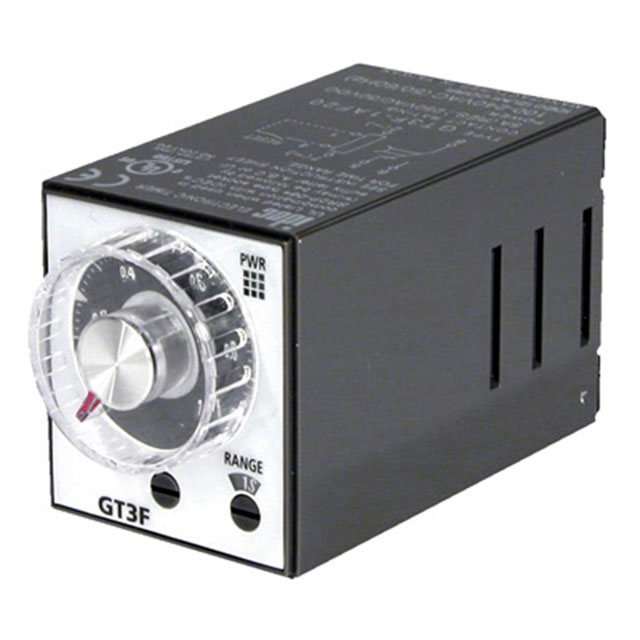

GT3F-1AF20
ActiveIDEC
ANALOG TIMER, GT3 SERIES, OFF-DELAY, 0.1 S, 600 S, 1 CHANGEOVER RELAY
Deep-Dive with AI
Search across all available documentation for this part.
GT3F-1AF20
ActiveIDEC
ANALOG TIMER, GT3 SERIES, OFF-DELAY, 0.1 S, 600 S, 1 CHANGEOVER RELAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GT3F-1AF20 |
|---|---|
| Contact Rating @ Voltage | 5 A, 250 VAC, 30 VDC |
| Delay Time [Max] | 600 Sec |
| Delay Time [Min] | 0.1 Sec |
| Function | Off-Delay |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In, 8 Pin (Octal) |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
GT3F-1AF Series
Off-Delay Time Delay Relay SPDT (1 Form C) 0.1 Sec ~ 600 Sec Delay 5A @ 250VAC/30VDC Socketable
