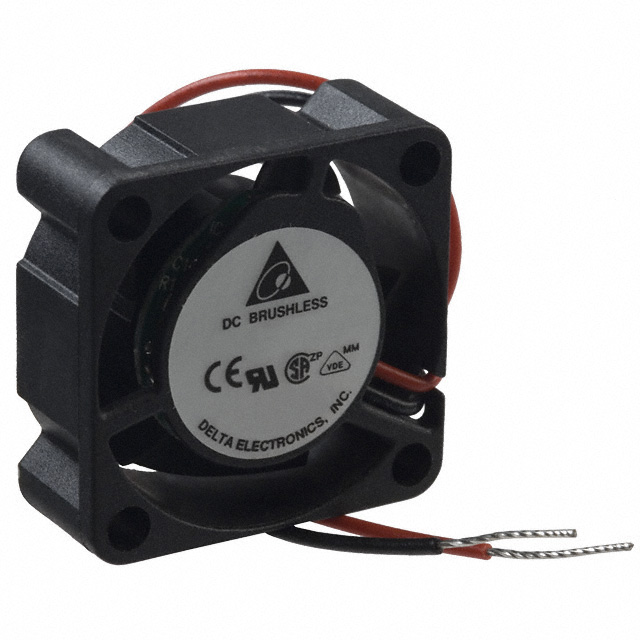

AFB02512HA-A

Obsolete

Delta Electronics

FAN AXIAL 25X10MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 25X10MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Air Flow	Air Flow	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Weight	Weight	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated	Current Rating (Amps)	Fan Type	Noise	Approval Agency	Termination	Material - Frame	Bearing Type	Width [y]	Material - Blade	Static Pressure	Static Pressure	Size / Dimension [x]	Size / Dimension [z]	RPM
Delta Electronics AFB02512HA-A	1.8 CFM	0.05 mł/min	30000 Hrs	70 °C	70 °C	-10 °C	-10 °C	720 mW	0.024 lb	10.89 g	13.2 VDC	7 V	12 VDC	60 mA	Tubeaxial	23.5 dB(A)	CE CSA UL VDE	2 Wire Leads	Plastic	Ball	10 mm	Plastic	0.176 in H2O	43.8 Pa	25 mm	25 mm	10000 RPM
Delta Electronics AFB02512HHA-A	2.4 CFM	0.067 m³/min	30000 Hrs	70 °C	70 °C	-10 °C	-10 °C		0.024 lb	10.89 g	13.2 VDC	7 V	12 VDC		Tubeaxial	28 dB	CE CSA UL VDE	2 Wire Leads	Plastic	Ball	10 mm	Plastic	0.3 in H2O	74.7 Pa	25 mm	25 mm	13000 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 12VDC Square - 25mm L x 25mm H Ball 1.8 CFM (0.050m³/min) 2 Wire Leads
