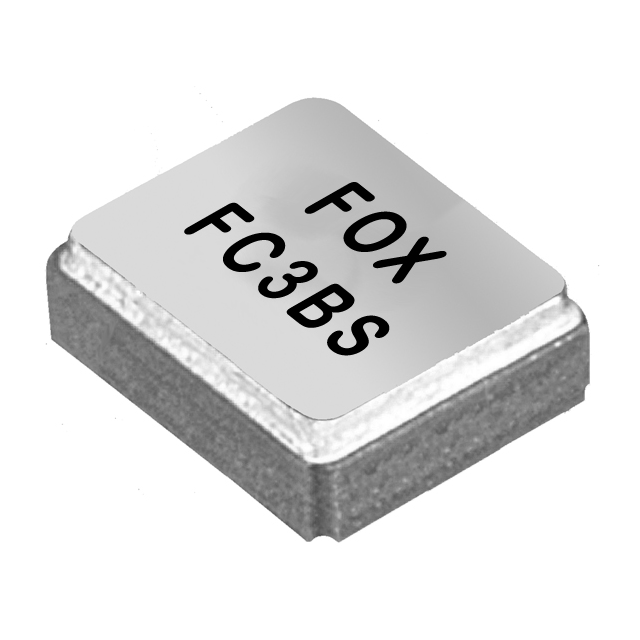

FC3BSHFEM12.0-T3
ActiveFox Electronics
CRYSTAL 12MHZ 10PF SMT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FC3BSHFEM12.0-T3
ActiveFox Electronics
CRYSTAL 12MHZ 10PF SMT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FC3BSHFEM12.0-T3 |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 12 MHz |
| Frequency Stability | 15 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Load Capacitance | 10 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.70 | |
| 10 | $ 0.58 | |||
| 50 | $ 0.53 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.37 | |||
| Digi-Reel® | 1 | $ 0.70 | ||
| 10 | $ 0.58 | |||
| 50 | $ 0.53 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.37 | |||
| Tape & Reel (TR) | 3000 | $ 0.34 | ||
| 6000 | $ 0.32 | |||
| 9000 | $ 0.31 | |||
| 15000 | $ 0.30 | |||
| 21000 | $ 0.30 | |||
| 30000 | $ 0.29 | |||
Description
General part information
FC3BSHFEM12.0-T3
12 MHz ±10ppm Crystal 10pF 80 Ohms 4-SMD, No Lead
Documents
Technical documentation and resources
